Tools & Equipments

  • Foundation
  • Erection
  • Stringing

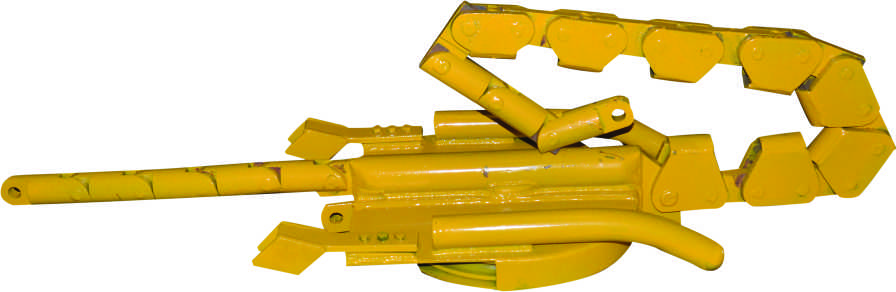

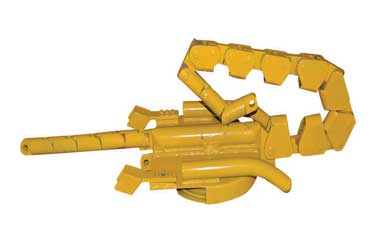

Catlog # 555

HEAD BOARD FOR TRIPLE CONDUCTOR

These are used during paying out / pulling of triple bundle conductors. The body and pulleys are fabricated from alloy steel and the pulleys rolls on bushes.

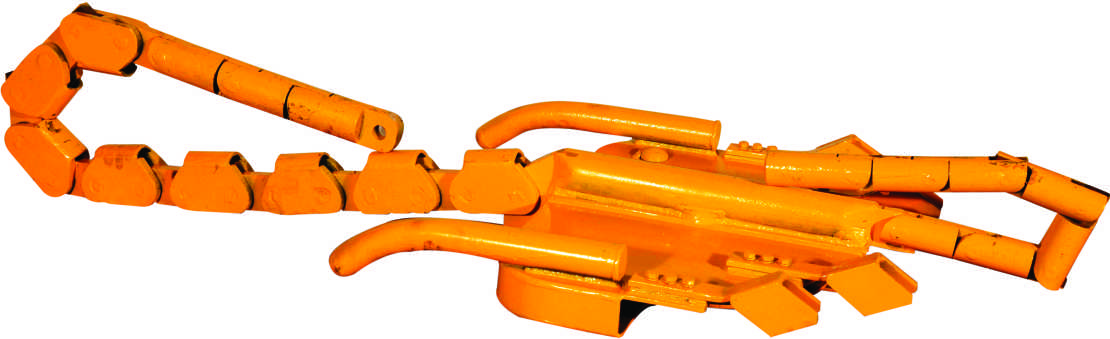

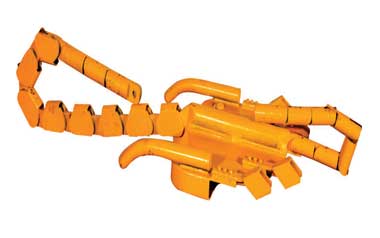

Catlog # 556

HEAD BOARD FOR QUAD CONDUCTOR

These are used during paying out / pulling of quad bundle conductors. The body and pulleys are fabricated from alloy steel and the pulleys rolls on bushes.

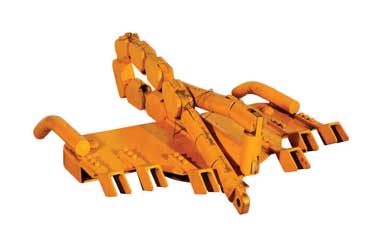

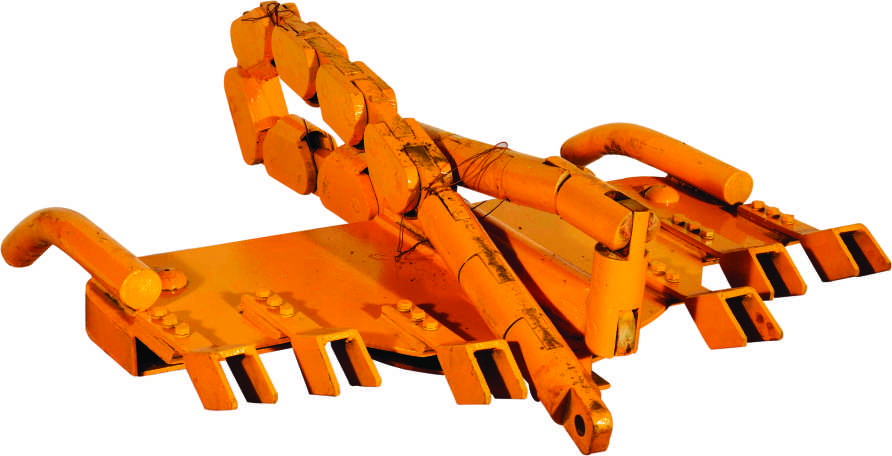

Catlog # 557

HEAD BOARD FOR HEX BUNDLE CONDUCTOR

These are used during paying out / pulling of hex bundle conductors. The body and pulleys are fabricated from alloy steel and the pulleys rolls on bushes.

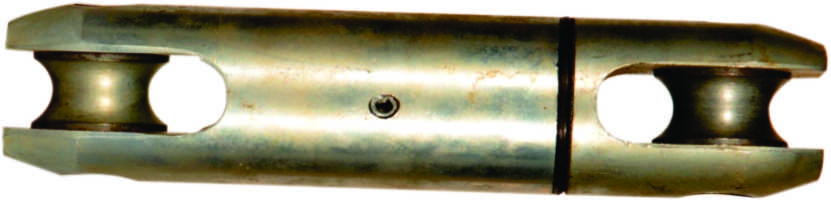

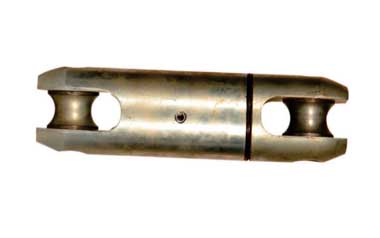

Catlog # 558

SWIVEL / ARTICULATED JOINT

These joints are used to connect shocks (conductor) with headboard (Pilot wire). During pulling of conductor it acts as a reliever of tensional strain, induced in the conductor during its manufacturing. These are also used in four sheave pulley block during final sagging. These are made up of high tensile steel. The two halves of unit are joined with bronze bush and thrust bearings which provide better load bearing and rotational ability.

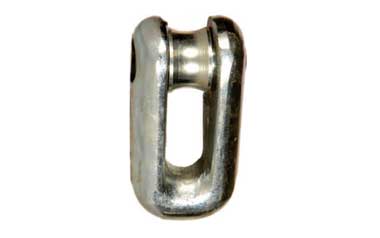

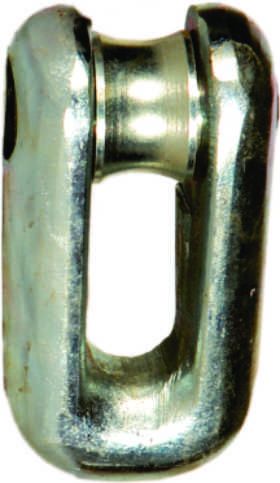

Catlog # 559

CONNECTING JOINT / PILOT WIRE CONNECTOR

These joint are used to connect one pilot wire / rope length to other. It’s dimensions are Kept such that it cope with the grooves in bull wheel of TSE machine. These are made up of high tensile steel.

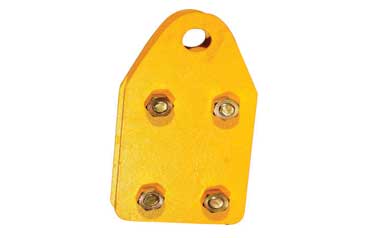

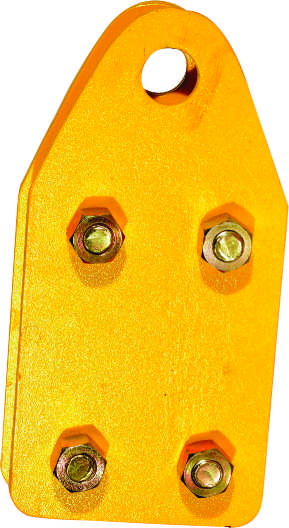

Catlog # 560

SAG CLAMP

These clamps are used during final sagging of conductors. The body is fabricated from alloy steel plates and the bolts & nuts are made up of high tensile steel.

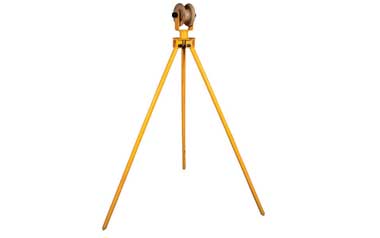

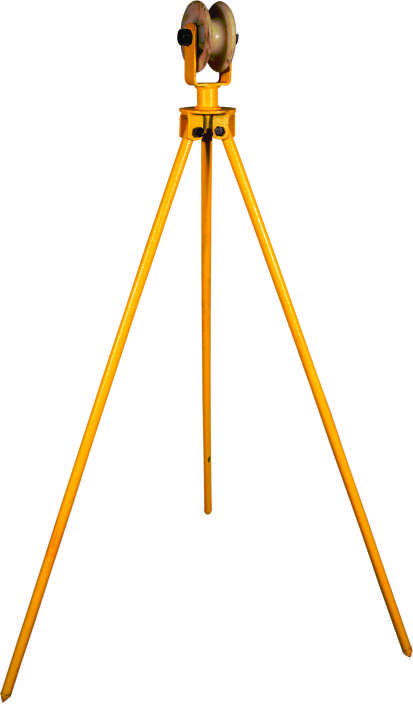

Catlog # 561

SINGLE GROUND ROLLER

These ground rollers are used during paying out of single conductor, it prevent conductor from rubbing on ground. The pulleys are made up of nylon and it rolls on bearings. The tripod is fabricated from alloy steel tube & flats

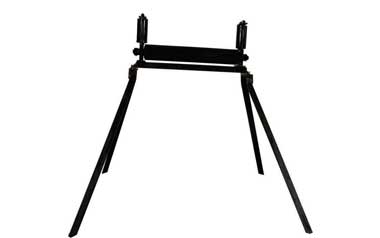

Catlog # 562

GROUND ROLLER, BARREL TYPE

These ground rollers are used during paying out of bundle conductors, it prevent conductors from rubbing on ground. The barrels are made up of rubber molding and rolls on ball bearing while the stands are fabricated from alloy steel tubes and flats.

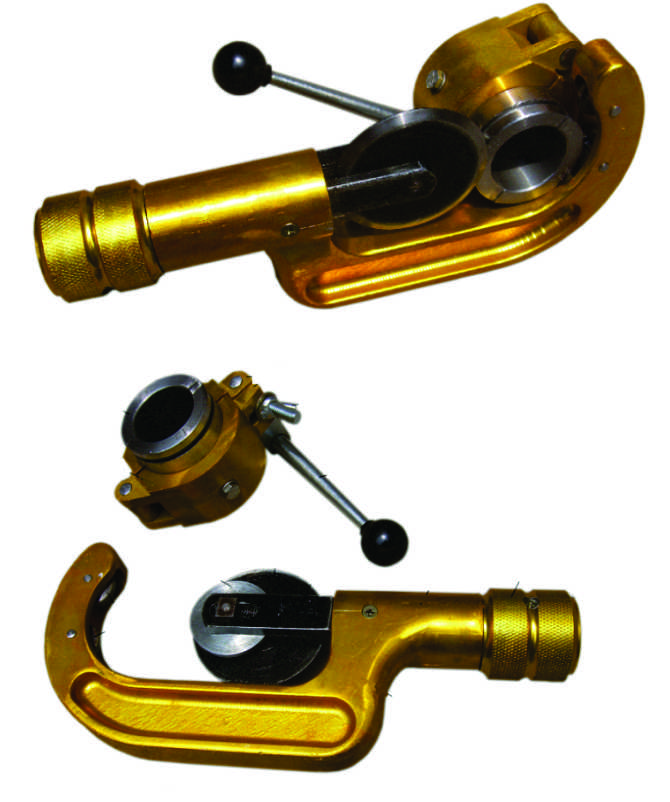

Catlog # 563

ALUMINIUM LAYER CUTTER (TRIMMER)

It is used where ever conductors are required to be trimmed layer by layer, swiftly and smoothly. Main Features- • Light weight aluminum alloy body. • Reliable and efficient cutting / peeling of aluminum layer of ACSR. • Safe and easy to operate.

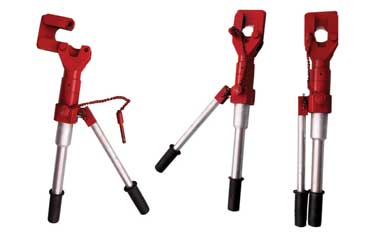

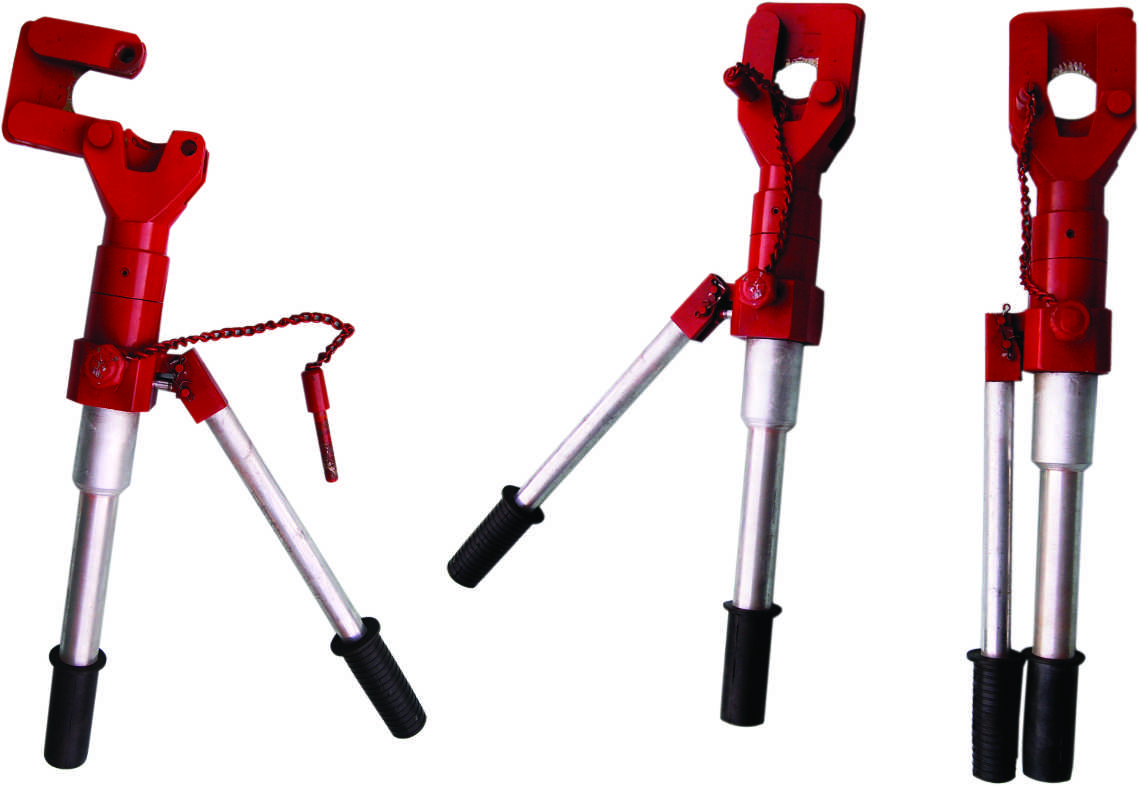

Catlog # 564

HYDRAULIC CONDUCTOR CUTTER

It is use for cutting of conductor ends quickly & smoothly. The cutting action is completed by means of manually operated hydraulic power. The body of the cutter is made up of forged steel alloy.

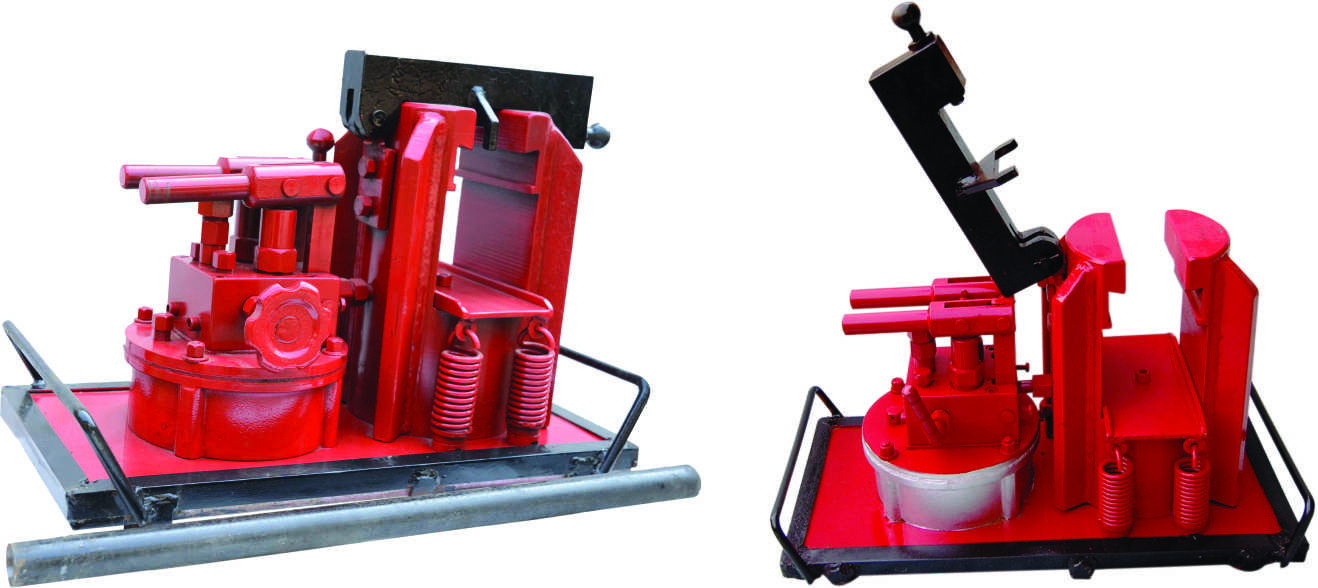

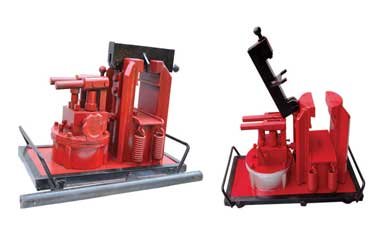

Catlog # 565

HYDRAULIC COMPRESSOR MACHINE

These machines are used for joining two ends of conductors, conductor with dead end or to compress repair sleeves and jumper cone.

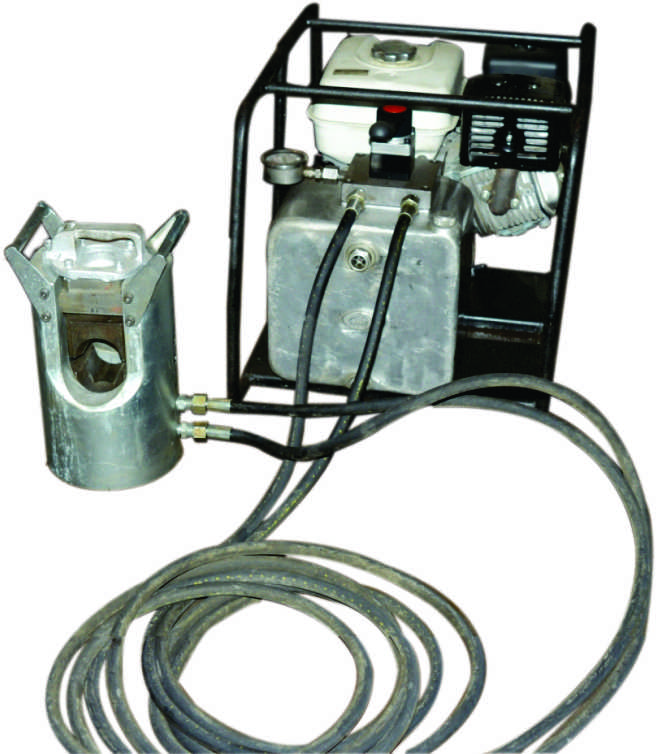

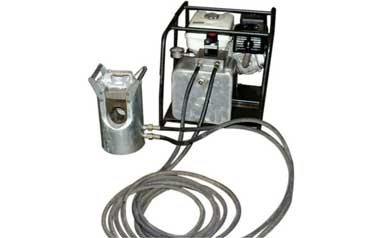

Catlog # 566

HYDRAULIC COMPRESSOR MACHINE MOTORIZED

These machines are used for joining two ends of conductors, conductor with dead end or to compress repair sleeves and jumper cone.

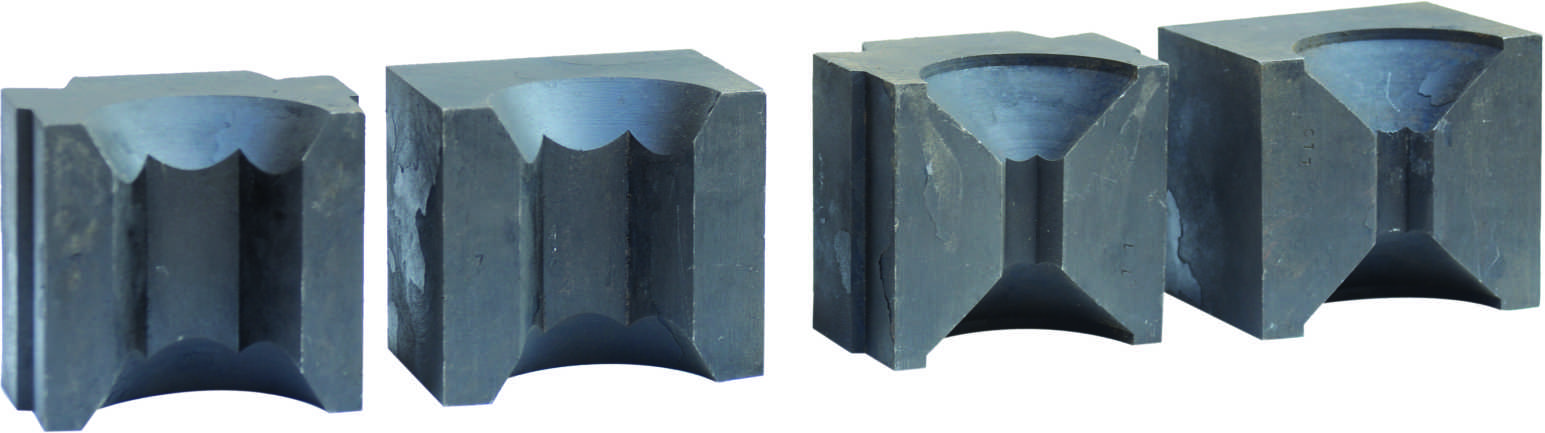

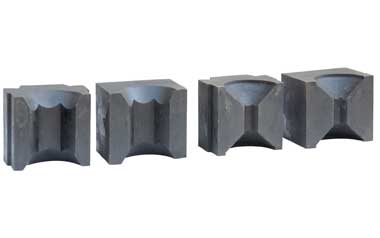

Catlog # 567

DIE SET

These are used during joining of two ends of conductor / earth wire, during pressing of dead ends or pressing of repair sleeve with the help of hydraulic compressor machine. These are fabricated from alloy steel.

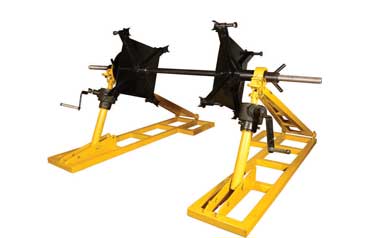

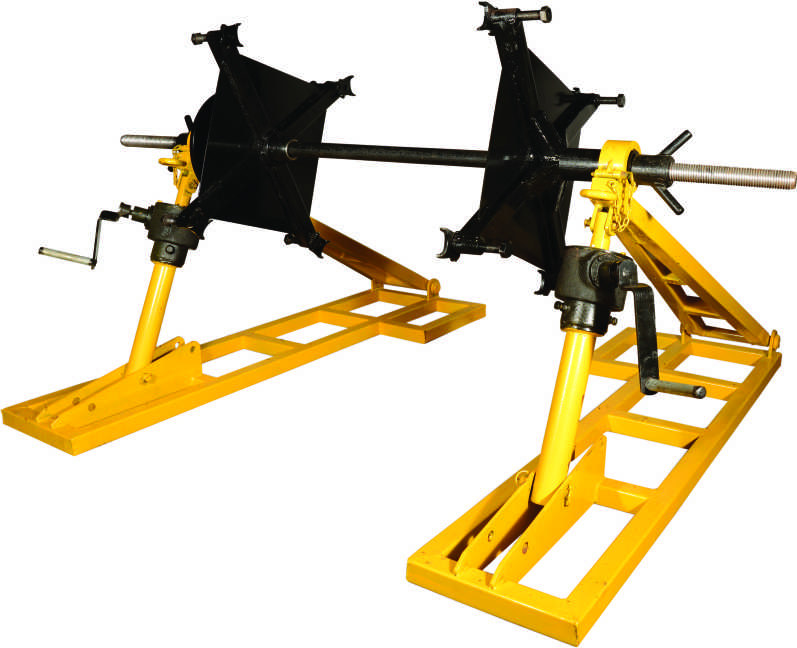

Catlog # 568

DRUM CLAMPING & LIFTING JACK

Theses jacks are used for clamping & lifting of conductor / earth wire drum. The lifting system of jack is based on mechanical screw jack system. The shaft rotates in the bush fixed in brackets. The braking arrangement facilitates reducing / stopping rotational speed of drum. The bases of the jacks are fabricated from alloy steel.

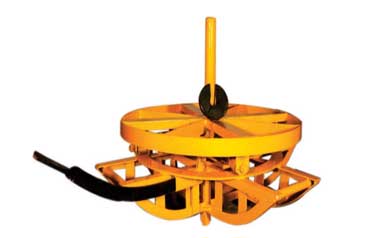

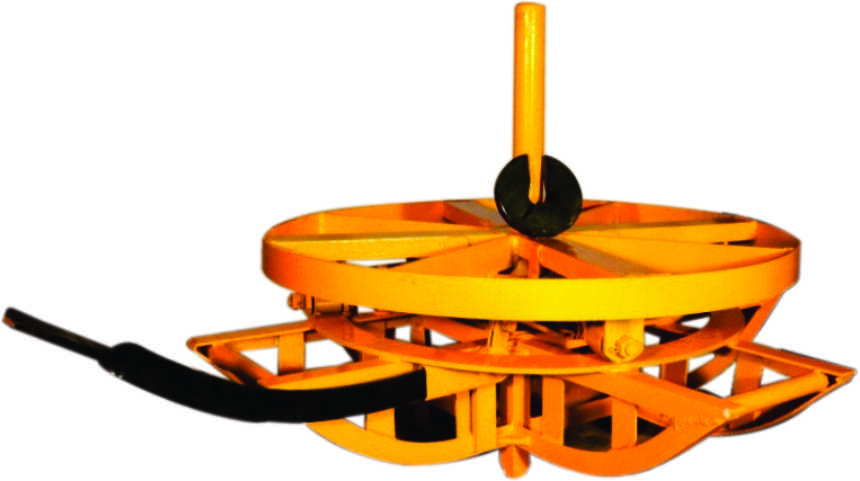

Catlog # 569

TURN TABLE

These are used during conductor / earth wire paying out in uneven terrain or when paying out is to be done from damaged conductor drums. The different part of the bodies is fabricated from alloy steel extrusion. The central shaft rotates on Tapper roller bearing. The breaking arrangement facilitates reducing / stopping rotational speed of drum.

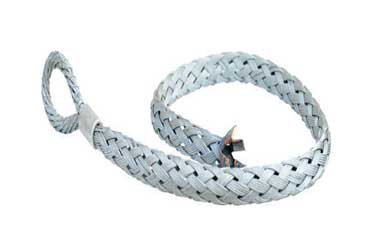

Catlog # 570

ONE END OPEN / PULLING SOCKS FOR COND

These are temporary mesh joint, used to connect conductor with pulling lead / pilot wire, during it’s paying out / pulling. These are woven from high tensile GI wire

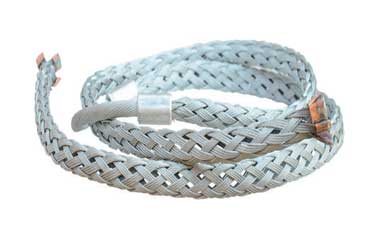

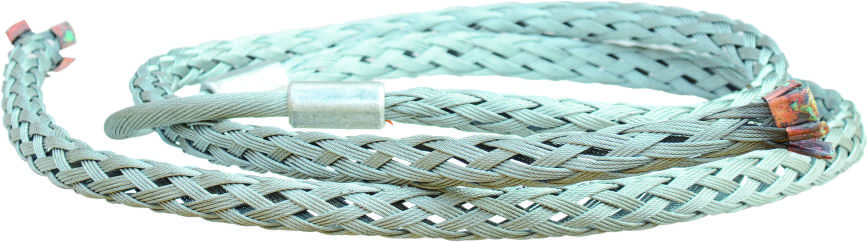

Catlog # 571

BOTH END OPEN SOCKS FOR CONDUCTOR

These are temporary mesh joint, used to connect two different ends of conductors during paying out / pulling of conductors. These are woven from high tensile GI wire.

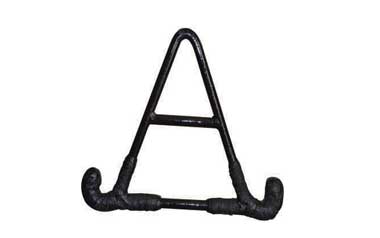

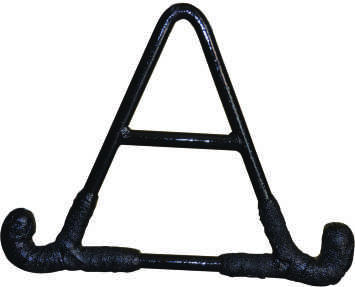

Catlog # 574

CONDUCTOR LIFTING TACKLES

These are used for lifting of twin conductors during clipping or where ever lifting of conductor is required. The body of the tackle is fabricated from alloy steel and conductor contacting area’s are molded with neoprene rubber.

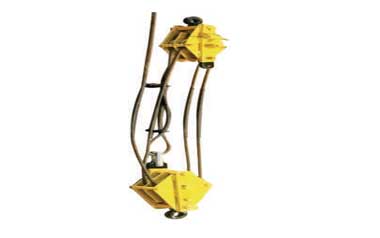

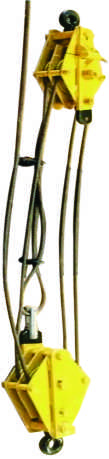

Catlog # 575

LIFTING TACKLE

Theses lifting tackles are used during stringing / tower erection. And suitable to use with up to 10mm steel wire rope. The roller is mounted on ball bearing and frame is made up of steel.

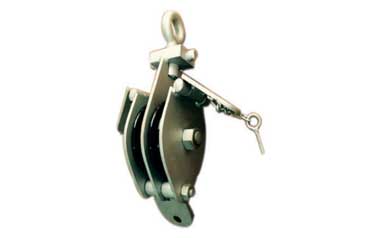

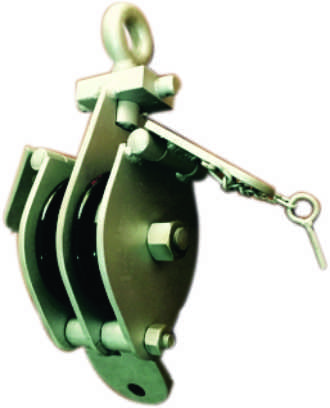

Catlog # 576

TWO WAY PULLEY OPEN TYPE / LIFTING TACKLE

These pulleys have various uses during tower erection and conductor stringing. It open form both side of the frame which facilitates easy loading & unloading of PP Rope. The frame and pulleys are made up of alloy steel. It comes in “S” or “EYE” hook which swing around on its pivot done on top of the frame. The pulley rolls on ball bearings. This pulley has integrated projection which facilitates easy attachment of swivel joint. These pulleys may also be used as lifting tackle when used in pair.

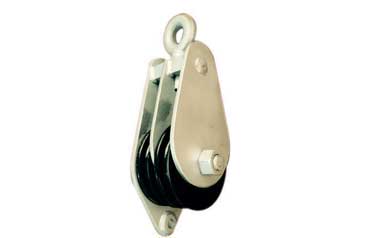

Catlog # 577

TWO WAY PULLEY CLOSE TYPE

These pulleys have various uses during tower erection and conductor stringing. The pulleys are closed within the frame hence only end of the rope can be passed over pulleys. The frame and pulleys are made up of alloy steel. It comes in “S” or “EYE” hook which swing around on its pivot done on top of the frame. The pulley rolls on ball bearings. This pulley has integrated projection which facilitates easy attachment of swivel joint. These pulleys may also be used as lifting tackle when used in pair.

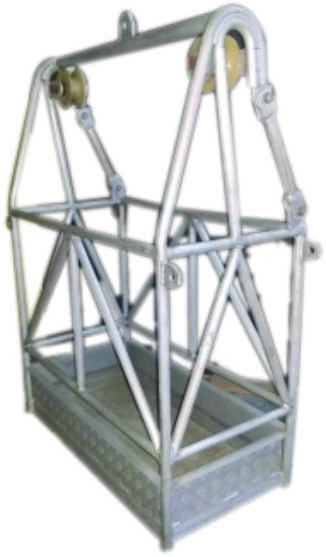

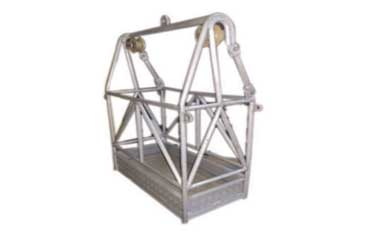

Catlog # 578

AERIAL / INSPECTION TROLLEY FOR SINGLE CONDUCTOR

These trolleys are used for the inspection of conductor. The body of the trolleys is fabricated from light weight aluminum alloy while rollers are made up of nylon which rolls on ball bearing.

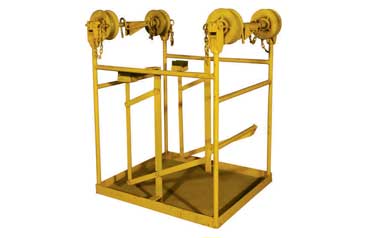

Catlog # 579

AERIAL TROLLEY FOR TWIN BUNDLE CONDUCTOR

These trolleys are used for fixing spacer / spacer damper between twin conductor of each phase and for the inspection of the conductor. The frames are fabricated from light weight aluminum alloy tube, while the rollers are made up of nylon. The rollers roll on ball bearings.

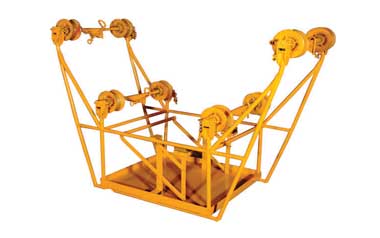

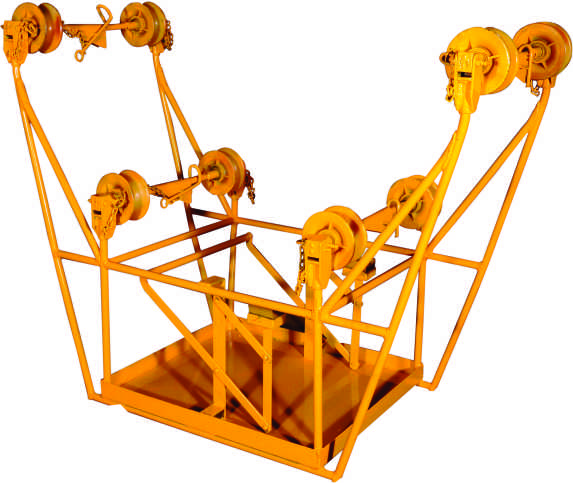

Catlog # 580

AERIAL TROLLEY FOR QUAD CONDUCTOR

These trolleys are used for fixing spacer / spacer damper between quad conductors of each phase. The frames are fabricated from light weight aluminum alloy tube, while the rollers are made up of nylon. The roller rolls on ball bearings.

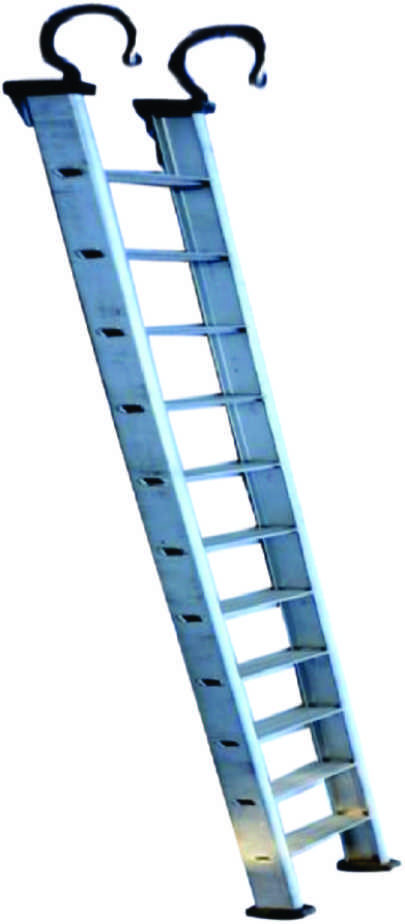

Catlog # 581

ALUMINIUM LADDER

These ladders have various uses like clipping of conductors / climbing on LT line poles and many others during stringing. The ladder is fabricated from light weight aluminum alloys channels and the hooks are fabricated from alloy steel.

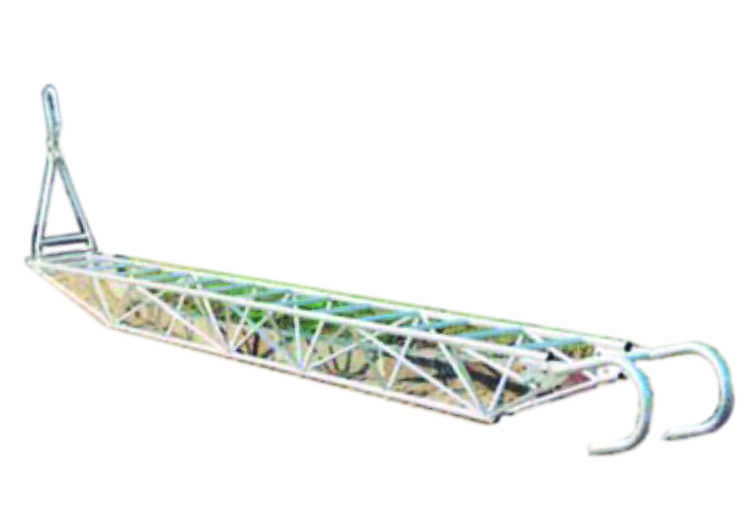

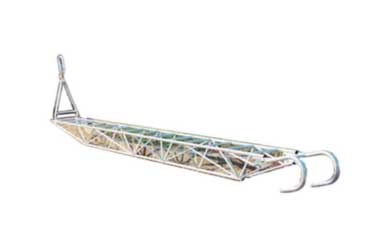

Catlog # 582

ALUMINUM LADDER / WORKING PLATFORM

It is designed to meet the purpose of aluminum ladder as well as horizontal working platforms. These are fabricated from different size of light weight aluminum alloy. The hanging system, fitted with ladder, has different shape fabricated from hot dip galvanized steel.

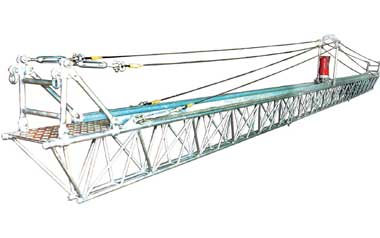

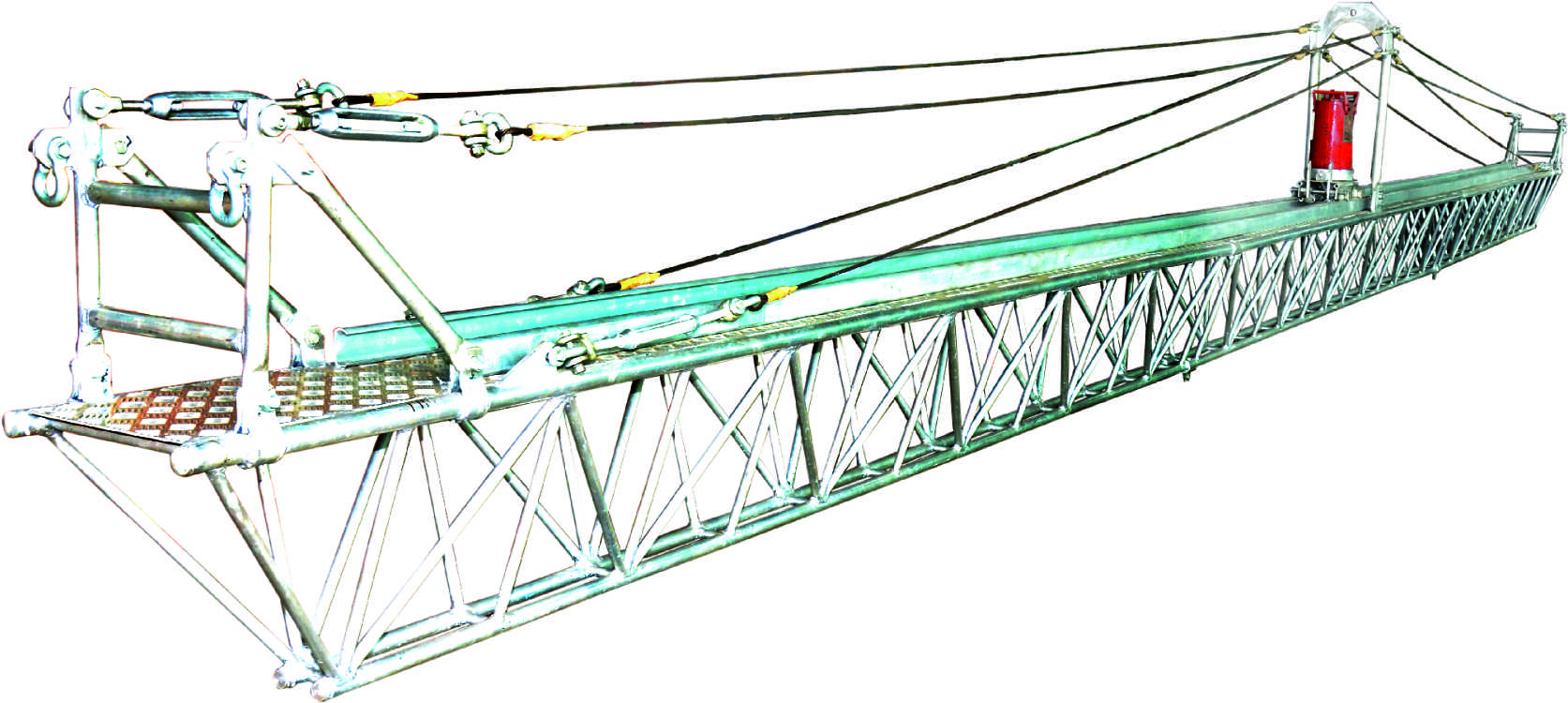

Catlog # 583

ALUMINUM SAGGING BRIDGE / WORKING PLATFORM

These platforms are used during clipping / repairing / maintenance of insulator and conductors. It has facility to hang with the cross arm of towers and equipped with anti fall arrangement. It is fabricated from light weight aluminum alloy tubes.

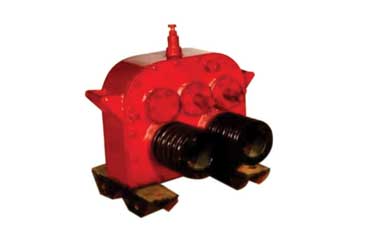

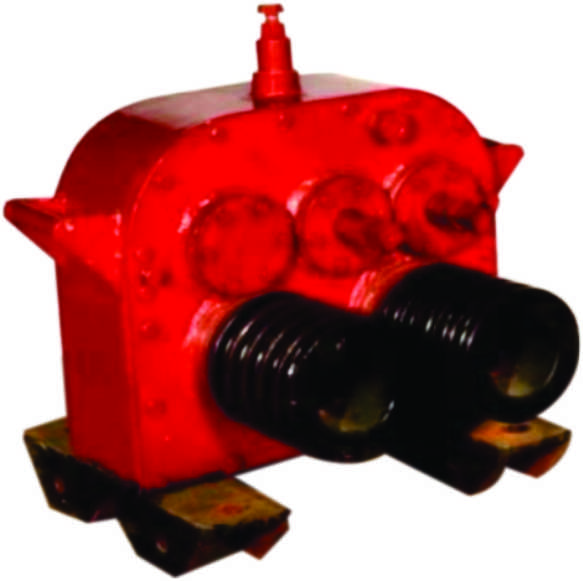

Catlog # 584

SAGGING WINCH

These winches are used during final sagging of conductor. It has two speed, which is achieved by means of manually rotating the shaft. The system is fitted with anti skid device.

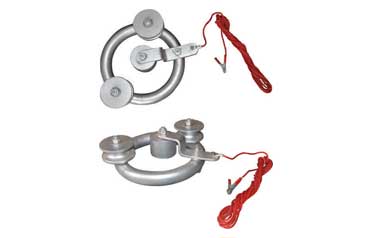

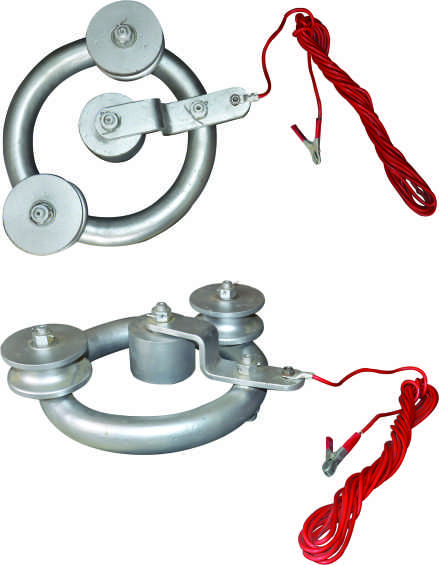

Catlog # 600

GROUNDING DEVICE

These are used to avoid operators and technicians from electrical shocks of induced current in the conductor, which may induced during stringing of line crossing stretch / sky lightening.

Catlog # 601

TSE GROUNDING DEVICE

These are used to avoid TSE machines and their operators from electrical shocks of induced current in the machine, which may induced during stringing of line crossing stretch / sky lightening.
