Tools & Equipments

  • Foundation
  • Erection
  • Stringing
Catlog # 516

FOUR SHEAVE SAGGING PULLEY BLOCK

These pulleys are used during final sagging of conductors. The pulleys are closed within the frame hence only end of the wire ropes can be passed across the pulleys grooves. The frames & pulleys are made up of alloy steel. It comes in “S” or “Eye” hook which swing around on its pivot done on top of the frame. The pulley rolls on ball bearing.

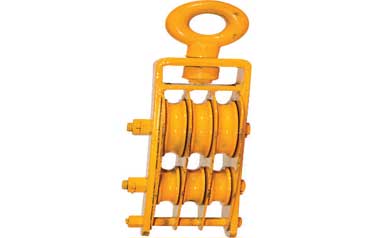

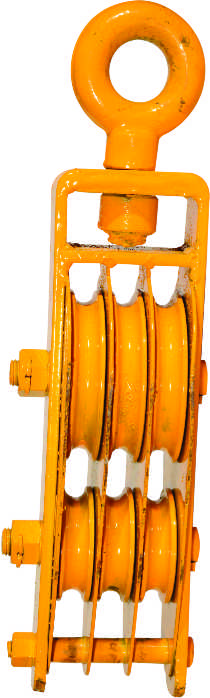

Catlog # 517

SIX SHEAVE SAGGING PULLEY BLOCK

These pulleys are used during final sagging of conductors. The pulleys are closed within the frame hence only end of the wire ropes can be passed across the pulleys grooves. The frames & pulleys are made up of alloy steel. It comes in “S” or “Eye” hook which swing around on its pivot done on top of the frame. The pulley rolls on ball bearing.

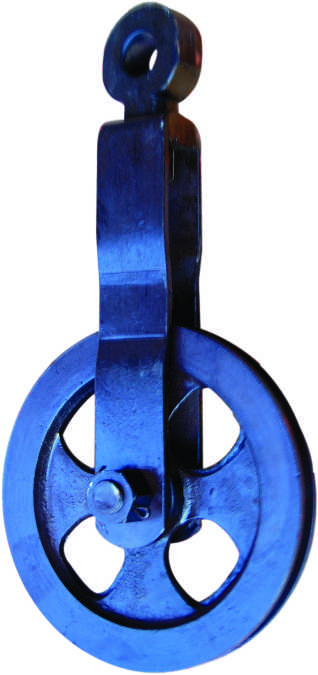

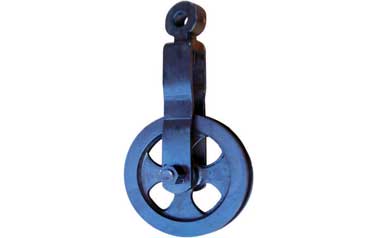

Catlog # 518

EQUALIZER PULLEY

These pulleys are used to equalize twin conductors during stringing. The body and roller of the pulley are made up of alloy steel. Rollers rolls on ball bearings.

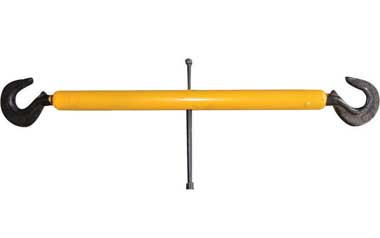

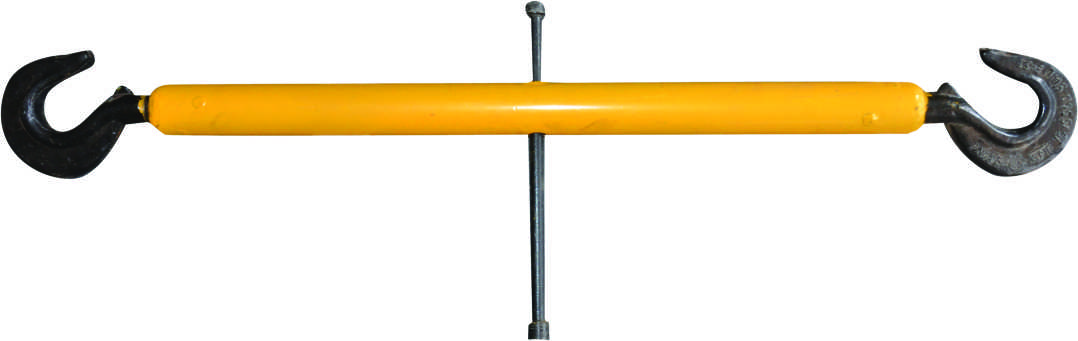

Catlog # 519-1

TURN BUCKLE

Turn buckles are used for providing tension in guy / back stay wire or where ever similar activity is required during tower erection or stringing. The bodies are made up of class “C” pipes of alloy steel while the hooks are made up of forged steel.

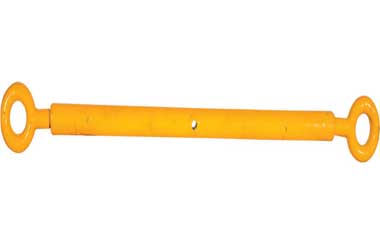

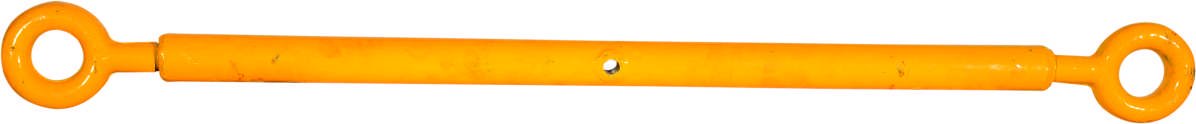

Catlog # 519-2

TURN BUCKLE

Turn buckles are used for providing tension in guy / back stay wire or where ever similar activity is required during tower erection or stringing. The bodies are made up of class “C” pipes of alloy steel while the hooks are made up of forged steel.

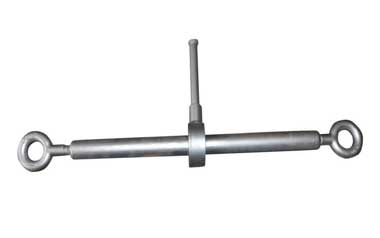

Catlog # 520

RATCHET TYPE TURN BUCKLE

Turn buckles are used for providing tension in guy / back stay wire or where ever similar activity is required during tower erection or stringing. The bodies are made up of forged steel, the turning of buckle is achieved by means of retched while the hooks are made up of forged steel.

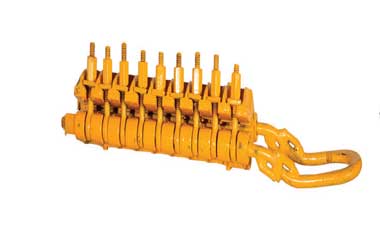

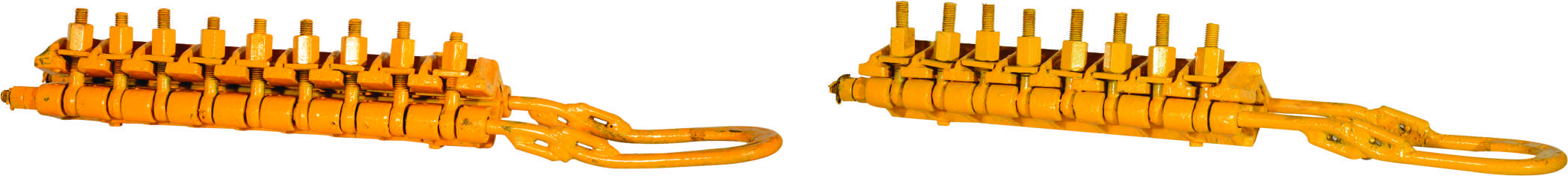

Catlog # 523

BOLTED TYPE COME ALONG CLAMP FOR CONDUCTOR

These clamps are used for clamping conductor. The body of these clamps is made up of alloy steel while the clamping bolts & nuts are made up of high tensile steel. No. of clamping bolts depends upon the capacity of clamps required. The grooves are lined with Aluminum alloy liner and these are inter changeable according to diameter of conductors.

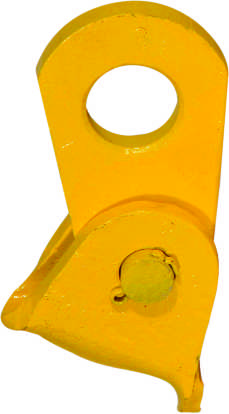

Catlog # 524

GRIP / KITTO CLAMP

These clamps are used wherever self gripping of steel wire rope is required. The clamps are assembled from its different alloy steel forged parts. The dimension of grooves depends upon the diameter of wire rope that has to grip.

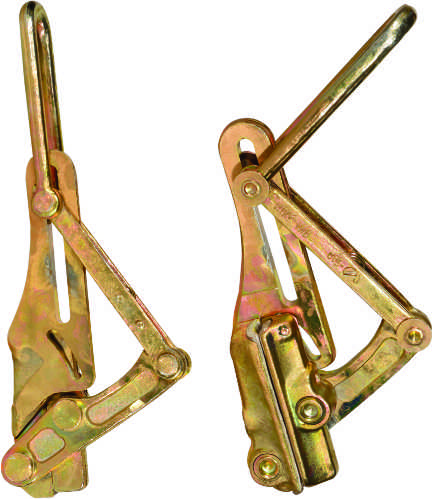

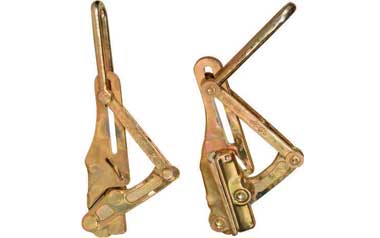

Catlog # 526

AUTOMATIC COME ALONG CLAMP FOR CONDUCTORS

These clamps are used wherever self griping of conductor is required. The clamps are assembled from its different forged alloy steel parts. The grooves are lined with Alluminium alloy liners which are interchangeable and depend upon diameter of the conductors.

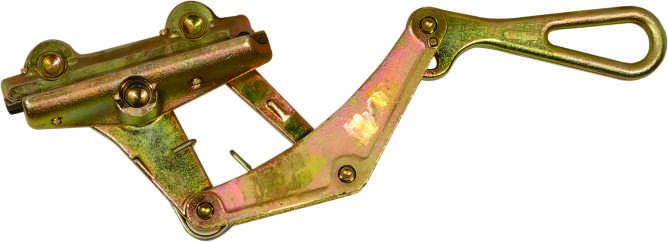

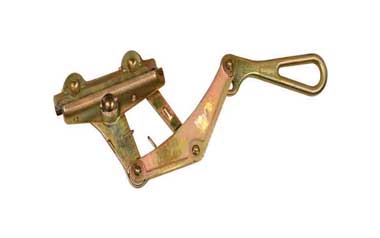

Catlog # 527

AUTOMATIC COME ALONG CLAMP FOR COND

These clamps are used wherever self griping of conductor is required. The clamps are assembled from its different forged alloy steel parts. The grooves are lined with Aluminum alloy liners which are interchangeable and depend upon diameter of the conductors.

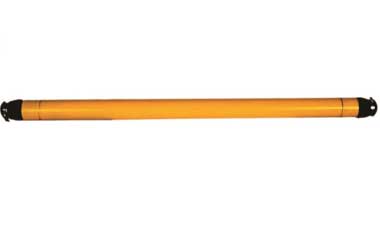

Catlog # 531

JOINT PROTECTOR

These are used to protect MSCJ from bending, when it passes over aerial roller, during stringing of the conductors. These are fabricated from class “C” pipes of alloy steel.

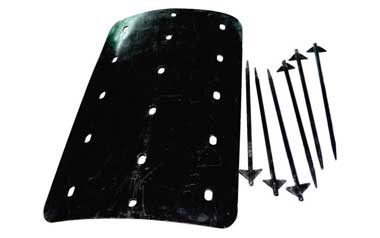

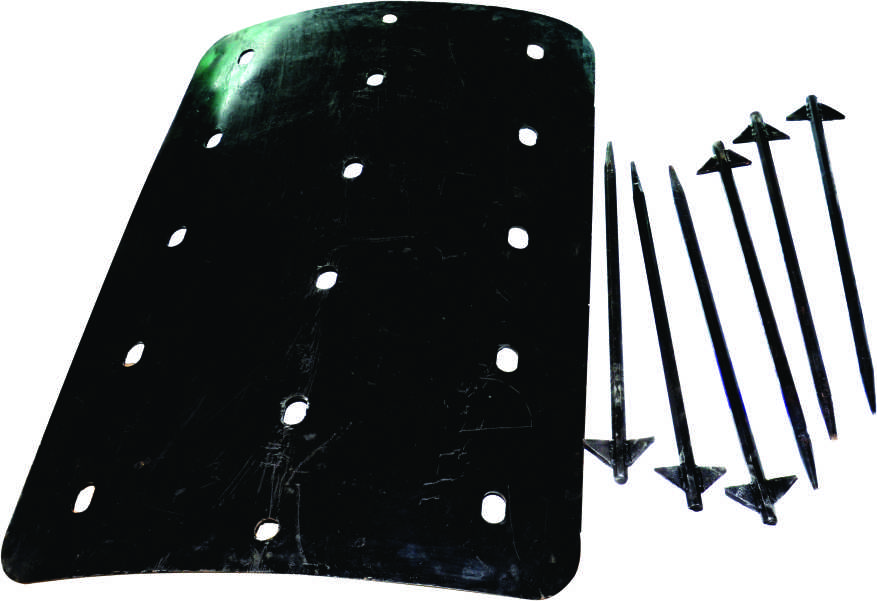

Catlog # 532

ANCHOR PLATE

These plates along with pins are used for the anchoring of towers during tower erection and stringing. These are fabricated from alloy steel.

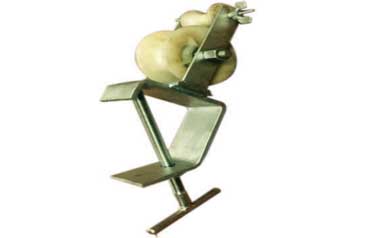

Catlog # 533-1

CROSS ARM ROLLER

These rollers are used during string of single conductor of L.T. Line. The design of the frame is suitable for cross arm up to 150 mm. The roller are made up of nylon and it roller on bearing while frame is fabricated from alloy steel. The top roller opened a side during inserting of conductor on the roller.

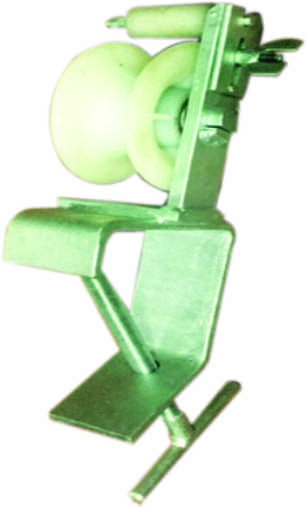

Catlog # 533-2

CROSS ARM ROLLER

These rollers are used during string of single conductor of L.T. Line. The design of the frame is suitable for cross arm up to 150 mm. The roller are made up of nylon and it roller on bearing while frame is fabricated from alloy steel. The top roller opened a side during inserting of conductor on the roller.

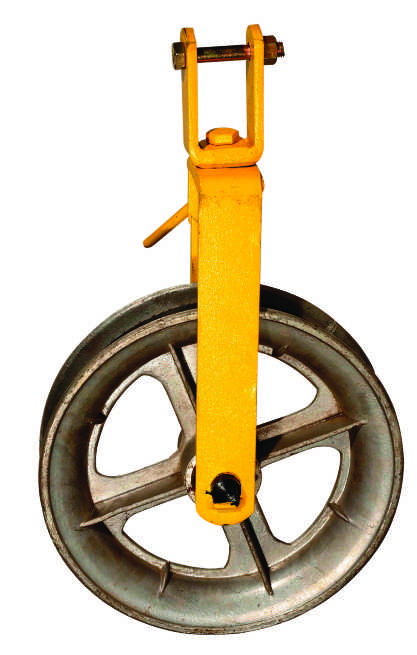

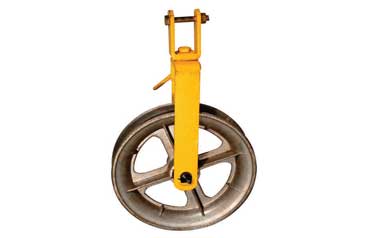

Catlog # 536

SINGLE AERIAL ROLLER

These rollers are used during stringing of single conductor. The rollers are made up of aluminum alloy & grooves are lined with neoprene rubber flap. The roller rolls on ball bearing. The hanging system of these rollers are kept swivel, Pivot or “S” hook type, which depends upon customer’s requirement. The frames are fabricated from alloy steel.

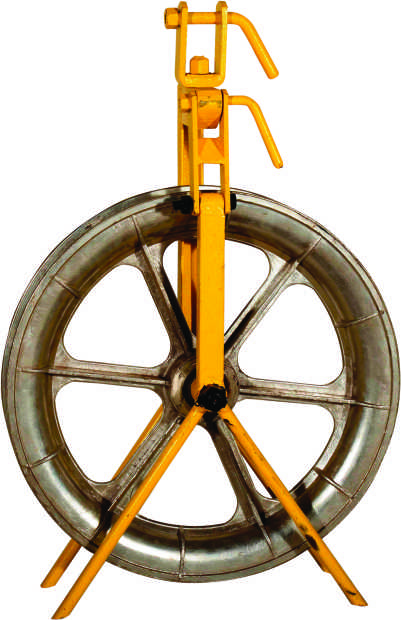

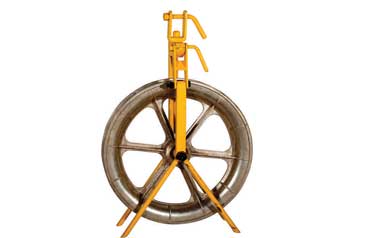

Catlog # 537

SINGLE AERIAL ROLLER

These rollers are used during stringing of single conductor or OPGW. The rollers are made up of aluminum alloy & grooves are lined with neoprene rubber flap. For OPGW stringing the groove of the roller has special design. The roller rolls on ball bearing. The hanging systems of these rollers are kept swivel, pivot or “S” hook type, which depends upon customer’s requirement. The frames are fabricated from single channel of alloy steel (if supplied in full frame) otherwise it’s a combination of alloy steel flat & channel (when supplied in half frame)

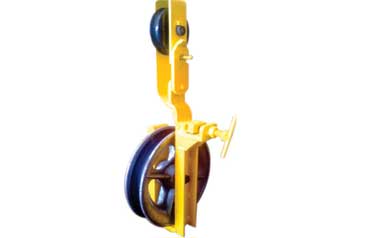

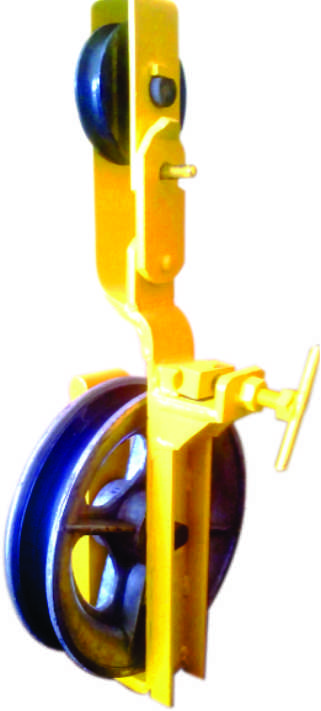

Catlog # 539

‘S’ TYPE AERIAL ROLLER

These rollers are used during stringing of single conductor. The rollers are made up of aluminum alloy & grooves are lined with neoprene rubber flap. The roller rolls on ball bearing. The frames are fabricated from alloy steel.

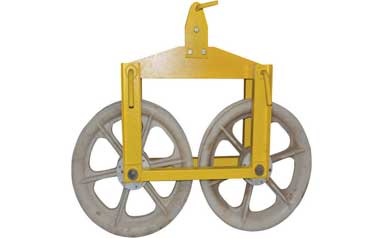

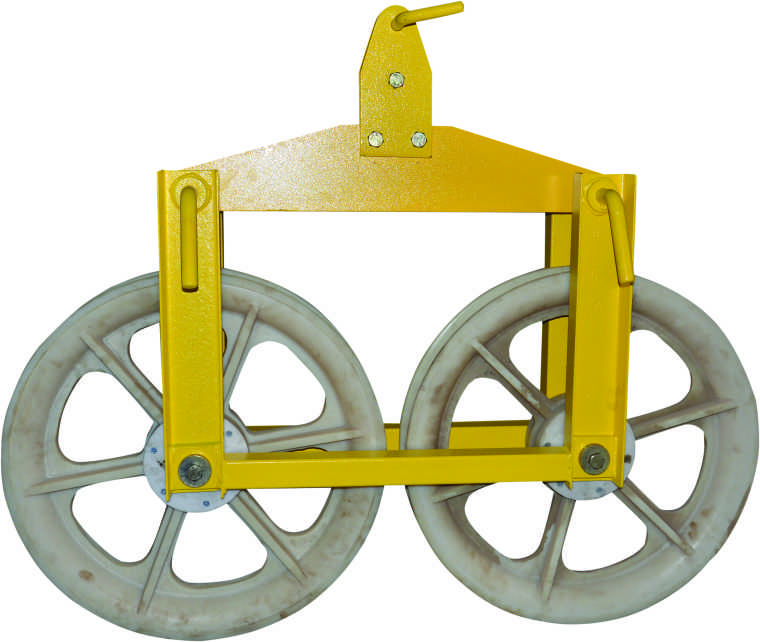

Catlog # 540

TANDEM TYPE AERIAL ROLLER

These rollers are used during stringing of single conductor. The frames are made up of alloy steel while rollers are made up of nylon / aluminum. The roller rolls on ball bearings.

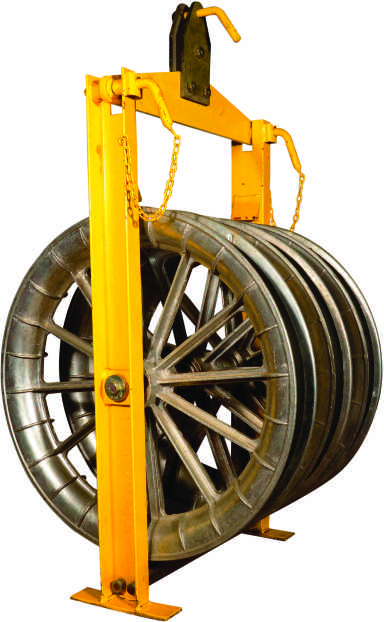

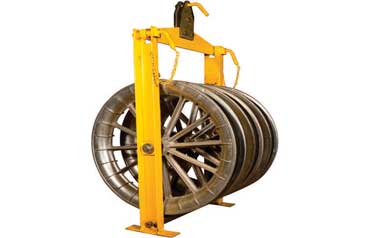

Catlog # 541

THREE SHEAVE AERIAL ROLLER

These rollers are used during stringing of twin bundle conductors. The rollers are made up of aluminum alloy & grooves are lined with neoprene rubber flap. The roller rolls on ball bearings. The hanging system of these aerial rollers are consists of yoke and hanging plate. The frames are fabricated from channel of alloy steel.

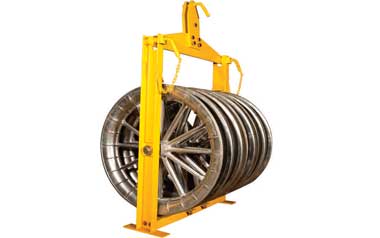

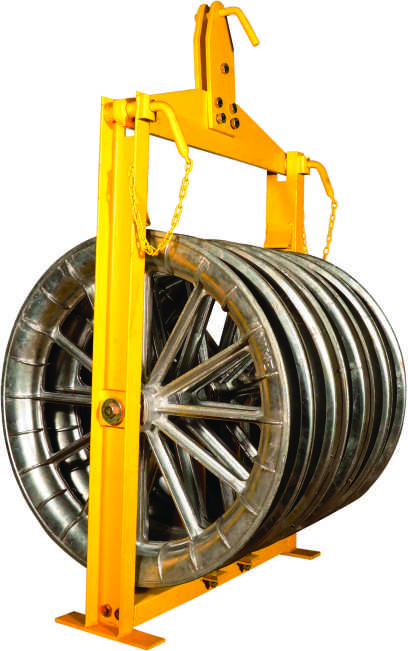

Catlog # 542

FIVE SHEAVE AERIAL ROLLER

These rollers are used during stringing of quad bundle conductors. The rollers are made up of Aluminum alloy & grooves are lined with neoprene rubber flap. The roller rolls on ball bearing. The hanging system of these aerial rollers are consists of yoke and hanging plate. The frames are fabricated from single channel of alloy steel.

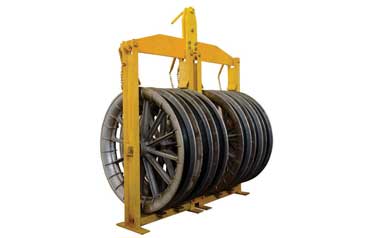

Catlog # 543

SIX SHEAVE AERIAL ROLLER

These rollers are used during stringing of hex bundle conductors. The rollers are made up of aluminum alloy & grooves are lined with neoprene rubber flap. The roller rolls on ball bearings. The hanging system of these aerial rollers are consists of yoke and hanging plate. The frames are fabricated from channel of alloy steel.

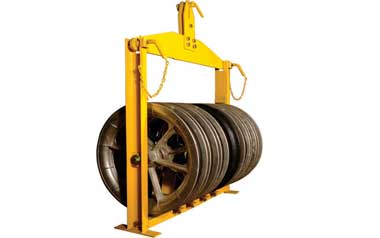

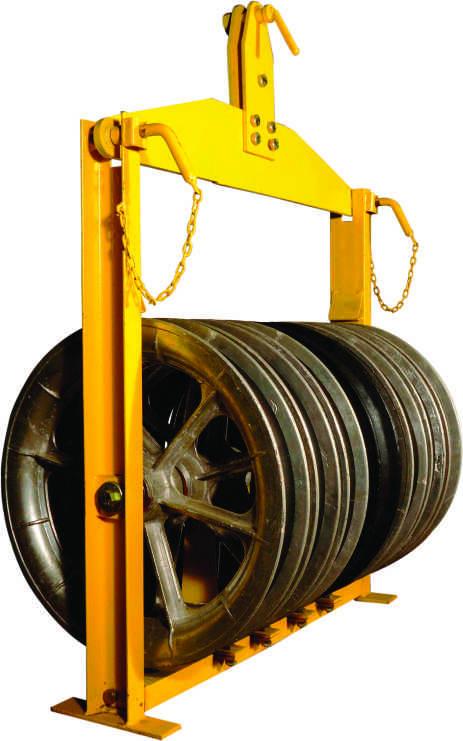

Catlog # 544

SEVEN SHEAVE AERIAL ROLLER

These rollers are used during stringing of hex bundle conductors. The rollers are made up of Aluminum alloy & grooves are lined with neoprene rubber flap. The roller rolls on ball bearing. The hanging system of these aerial rollers are consists of yoke and hanging plate. The frames are fabricated from channel of alloy steel.

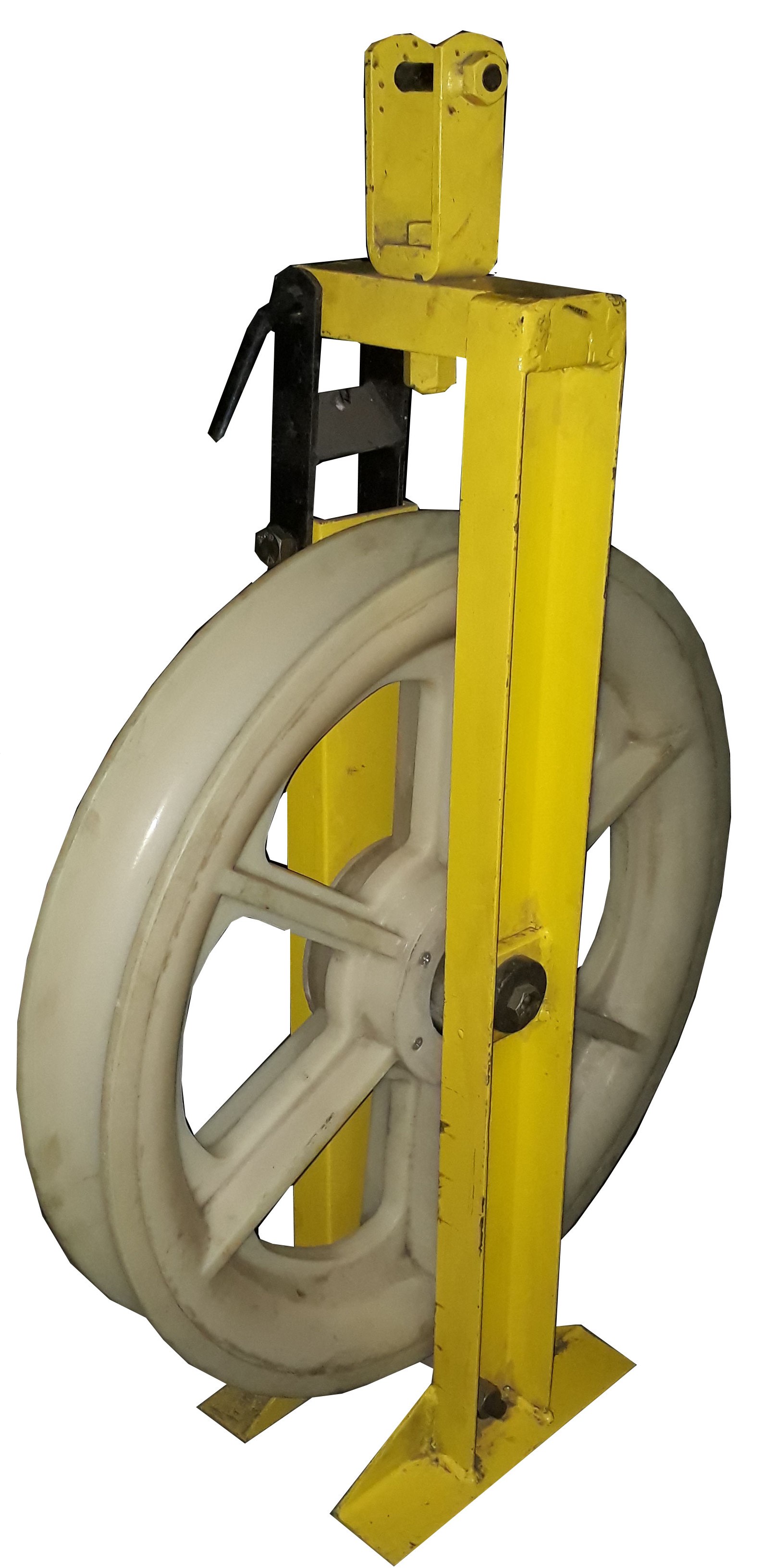

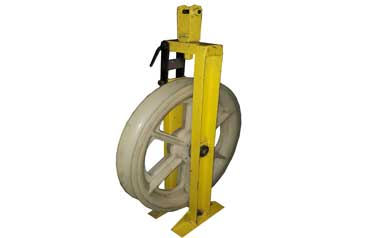

Catlog # 545A

SINGLE SHEAVE NYLON AERIAL ROLLER

These rollers are used during stringing of single conductor or OPGW. The rollers are made up of nylon. The roller rolls on ball bearings. The hanging system of these aerial rollers are consists of yoke and hanging plate. The frames are fabricated from channel of alloy steel.

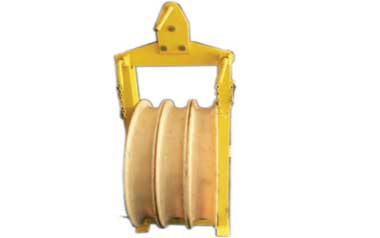

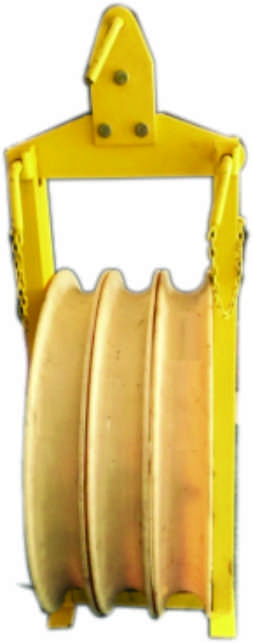

Catlog # 545

THREE SHEAVE NYLON AERIAL ROLLER

These rollers are used during stringing of twin bundle conductors. The rollers are made up of nylon. The roller rolls on ball bearings. The hanging system of these aerial rollers are consists of yoke and hanging plate. The frames are fabricated from channel of alloy steel.

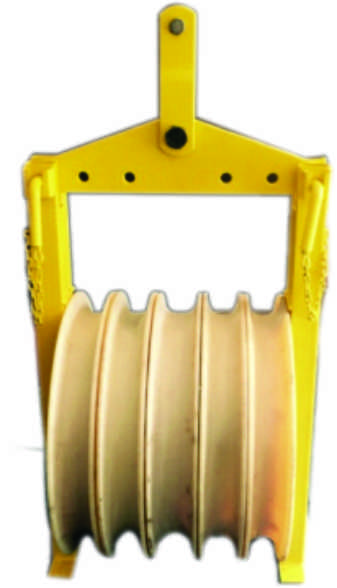

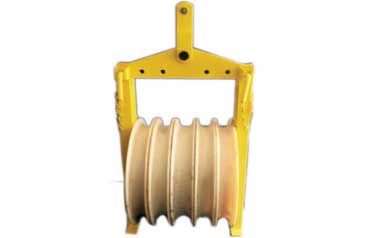

Catlog # 546

FIVE SHEAVE NYLON AERIAL ROLLER

These rollers are used during stringing of quad bundle conductors. The rollers are made up of nylon. The roller rolls on ball bearings. The hanging system of these aerial rollers are consists of yoke and hanging plate. The frames are fabricated from channel of alloy steel.

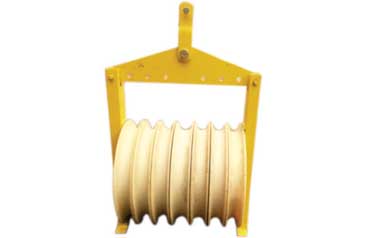

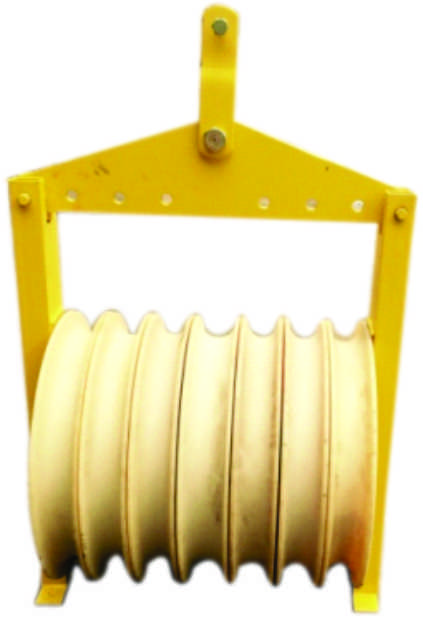

Catlog # 547

SEVEN SHEAVE NYLON AERIAL ROLLER

These rollers are used during stringing of hex bundle conductors. The rollers are made up of nylon. The roller rolls on ball bearing. The hanging system of these aerial rollers are consists of yoke and hanging plate. The frames are fabricated from single channel of alloy steel. The frames are fabricated from channel of alloy steel.

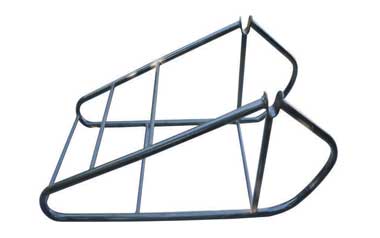

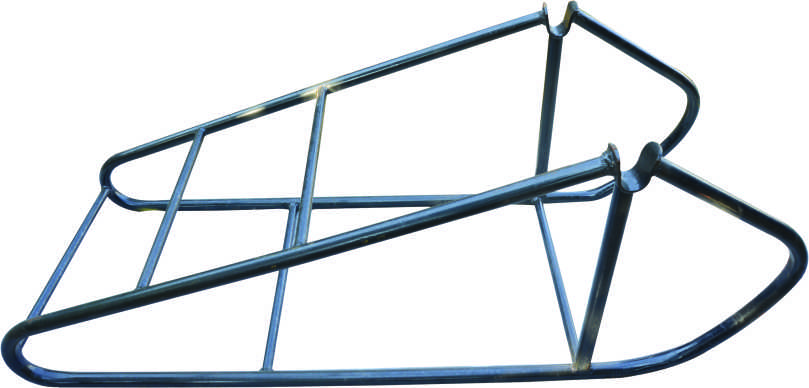

Catlog # 551-1

REEL AND BOBBIN STAND

The reels are used for winding of pilot wire and the pilot wire wrapped reels along with reel cradle are used during paying out of pilot wire. These are fabricated from alloy steel tubes.

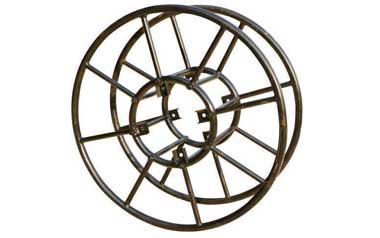

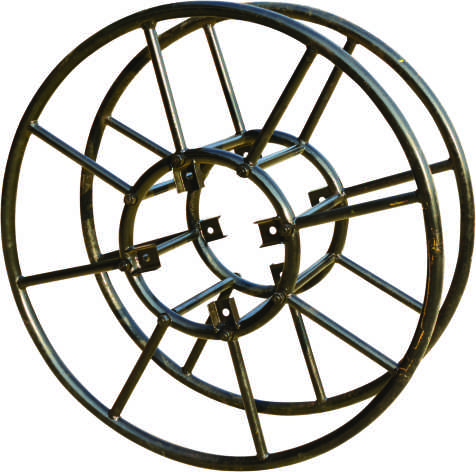

Catlog # 551-2

REEL AND BOBBIN STAND

The reels are used for winding of pilot wire and the pilot wire wrapped reels along with reel cradle are used during paying out of pilot wire. These are fabricated from alloy steel tubes.

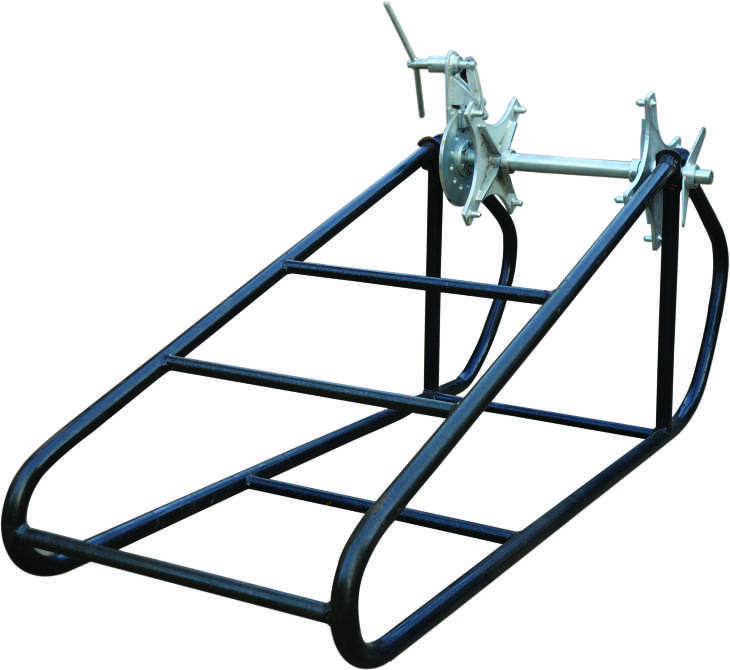

Catlog # 552

REEL AND BOBBIN STAND FOR HELICOPTER STRINGING

The reels cradle is specially designed for paying out of pilot wire by helicopter, It is designed for easy mounting of pilot wire real and it’s rotational speed coupe with the speed of paying out done by helicopter. The body is fabricated from extruded steel tube while reel clamping system and shaft is made up of alloy steel.

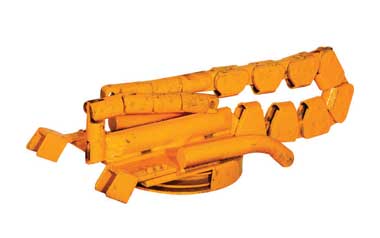

Catlog # 554

HEAD BOARD FOR TWIN BUNDLE CONDUCTOR

These are used during paying out / pulling of twin bundle conductors. The body and pulleys are fabricated from alloy steel and the pulleys rolls on bushes.

123NextLast
