Catalog No :
674
a) CABLE ROLLERS (CAT.NO. 674 A)
These rollers are designed for easy lying of conductor cables; the dimension of rollers is kept as per size of the cables to be laid. These rollers have been designed in number of variants according to its purpose and use.
Rollers are made up of Aluminum / Steel alloy and rolls on sealed bearings the entire system of rollers is fixed on lightweight robust High Tension Steel frame and the frame and High-Tension Steel portion of each cable rollers are powder coated for better protection against corrosion
b) PILOT ROLLERS (CAT.NO. 674 B)
These are initial rollers kept just in front of cable drum at the point where cables are about to touch the
ground it guides and align the cable unidirectional.

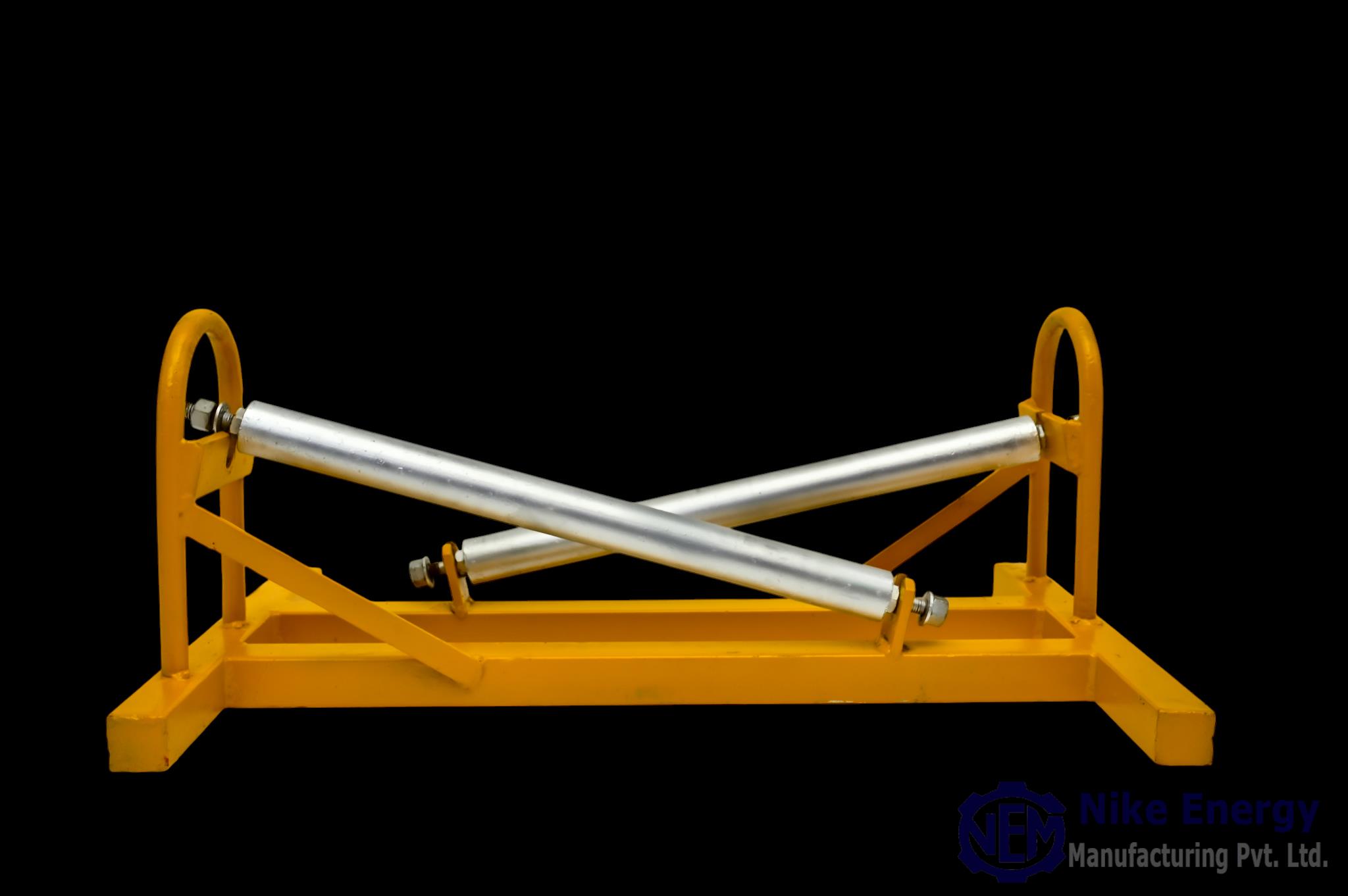

c) ALIGN ROLLERS (CAT.NO. 674 C)
These rollers are providing support to the cables where ever pulling is done in straight line either
in trench or on ground.
d) NARROW TRENCH ROLLERS (CAT.NO. G74 D)
This is designed to meet the requirement of cable pulling in narrow trenches

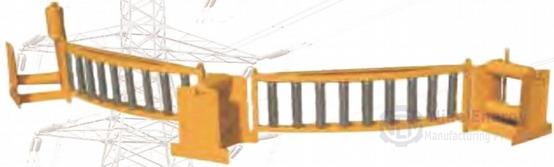

e) ANGLE POINT ROLLERS (CAT.NO. 674 E)
These rollers are designed to meet the requirement of cable pulling at angular turning point
f) CIRCULAR BASE ROLLER (CAT.NO. 674 F)
These rollers are designed to meet the requirement of cable pulling over cable laid down

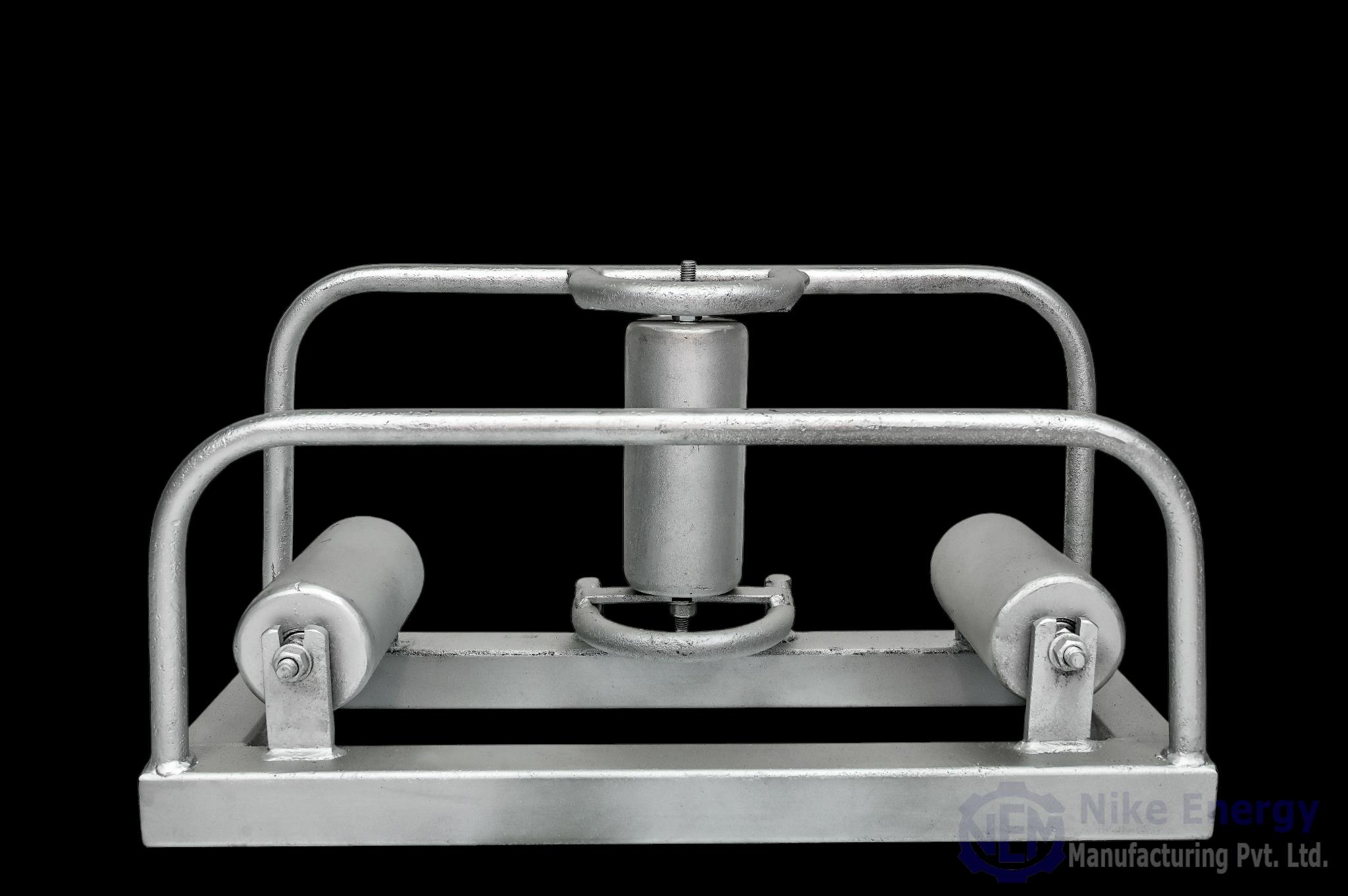

g) AERIAL CABLE ROLLER (CAT.NO. 674 G)
These rollers are designed to meet the requirement of cable pulling above the ground / high rise building and gantries of power substations
h) PREMIER CABLE ROLLERS (CAT.NO. 574 H)
These are the first roller kept in to the trench after pilot roller, due to its wide rolling area it cope the swiveling phenomena of the cable which may induced during its pulling
