Erection

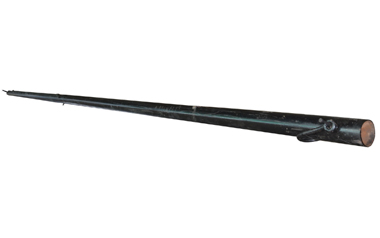

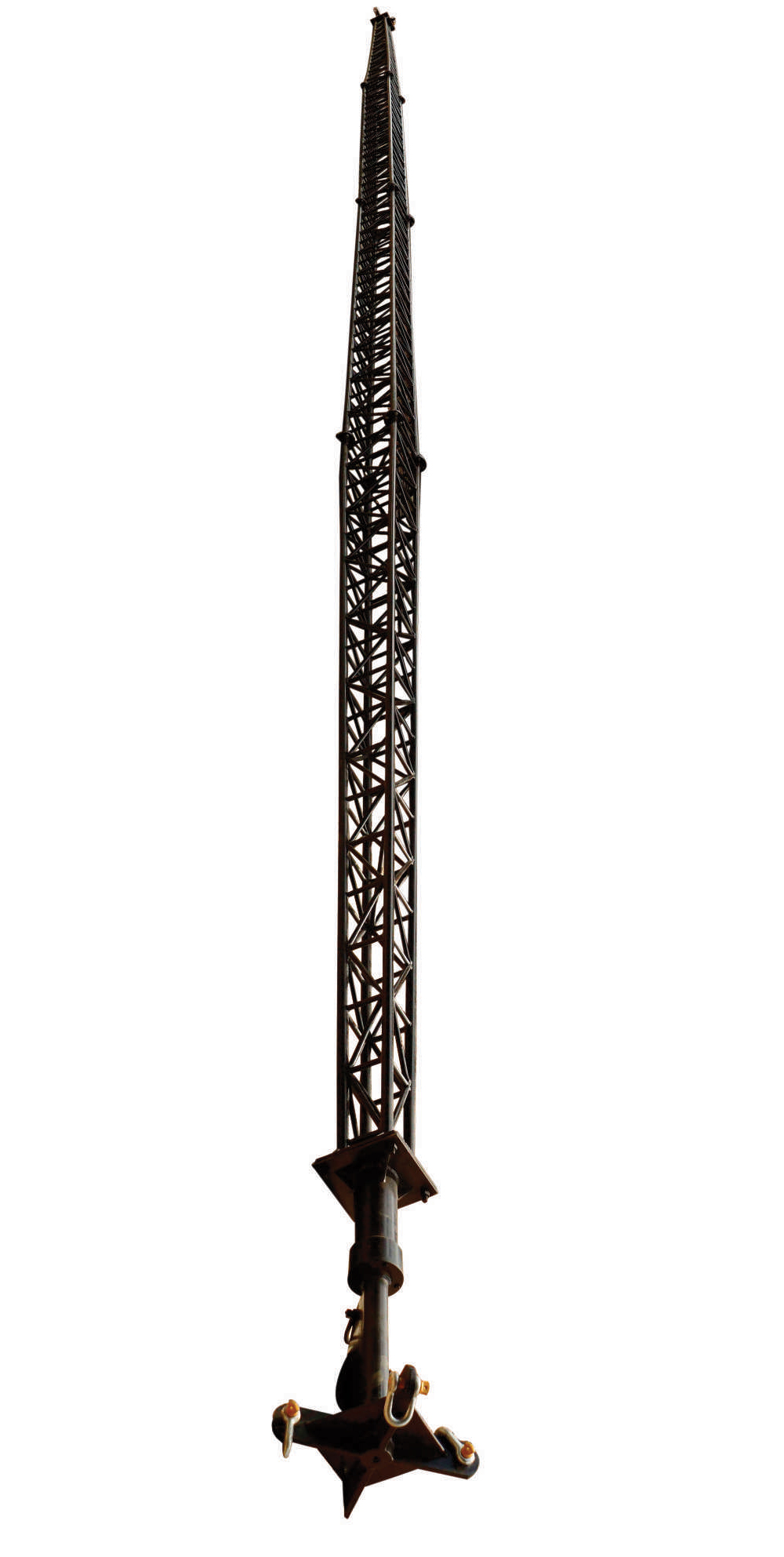

Derrick poles are used during tower erection. These poles are fabricated from best quality steel pipes. The diameter of pipe depends upon the maximum bending moment acts on it during tower erection.

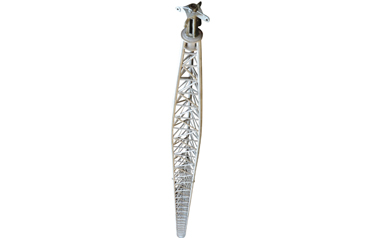

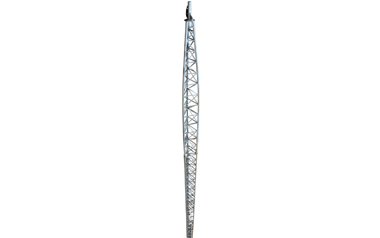

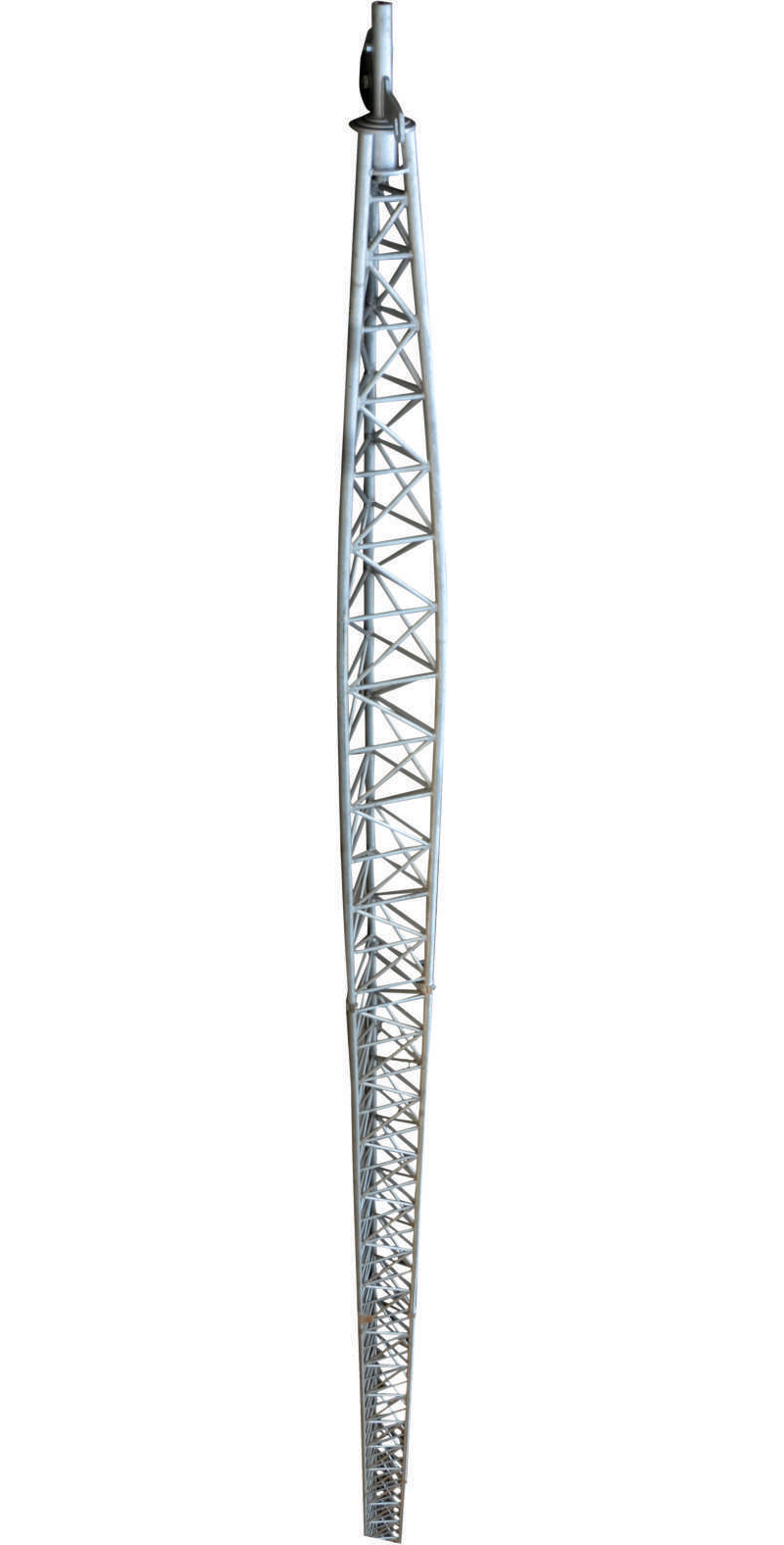

These are used during Tower erection by placing it in the center of tower to be erected, its top head has 360 degree rotation which facilitate lifting and feeding of tower member to all four legs. The gin poles are fabricated from light weight aluminum alloy extrusion of different diameter.

These are used during Tower erection by placing it in the center of tower to be erected, its top head has 360 degree rotation which facilitate lifting and feeding of tower member to all four legs. The gin poles are fabricated from light weight aluminum alloy extrusion of different diameter.

These are used during Tower erection by placing it in the center of tower to be erected its top head has 360 degree rotation which facilitate lifting and feeding of tower member to all four legs. The gin poles are fabricated from alloy steel tubes or aluminum alloy light weight extruded tubes of different diameter, depends upon requirements.

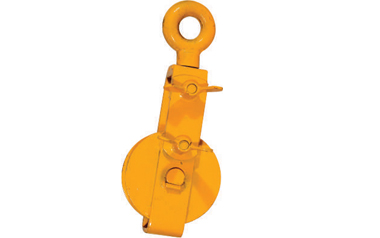

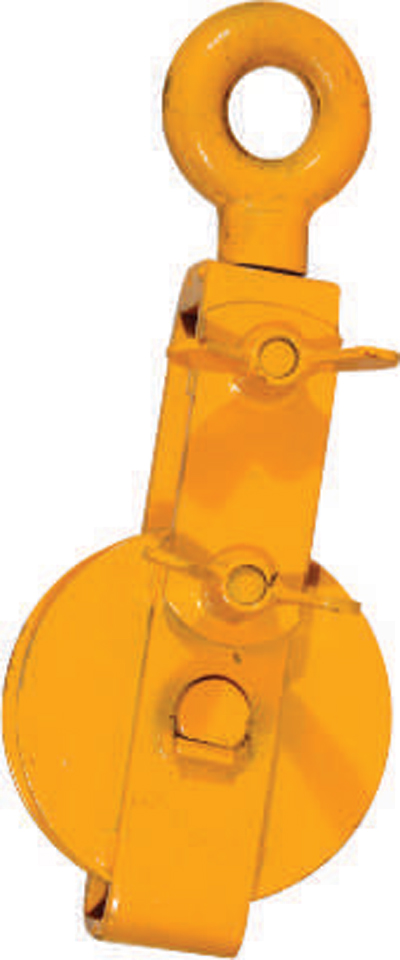

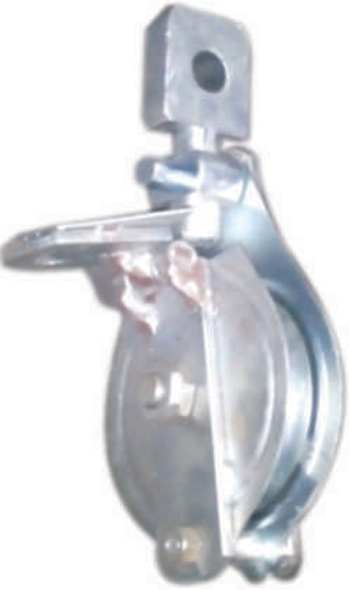

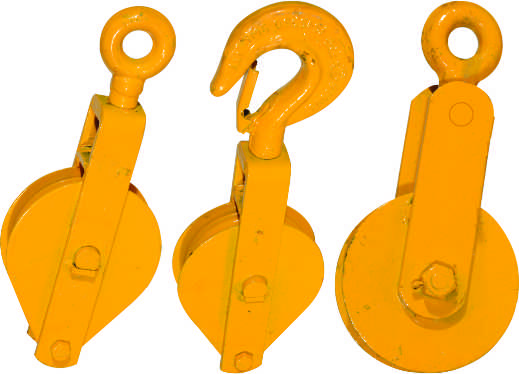

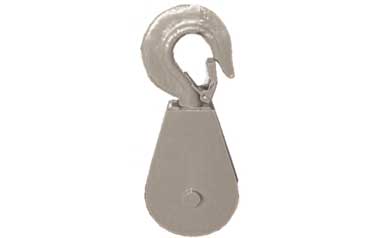

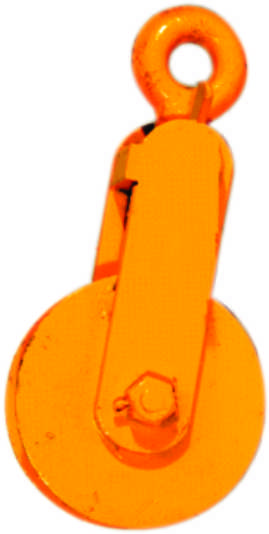

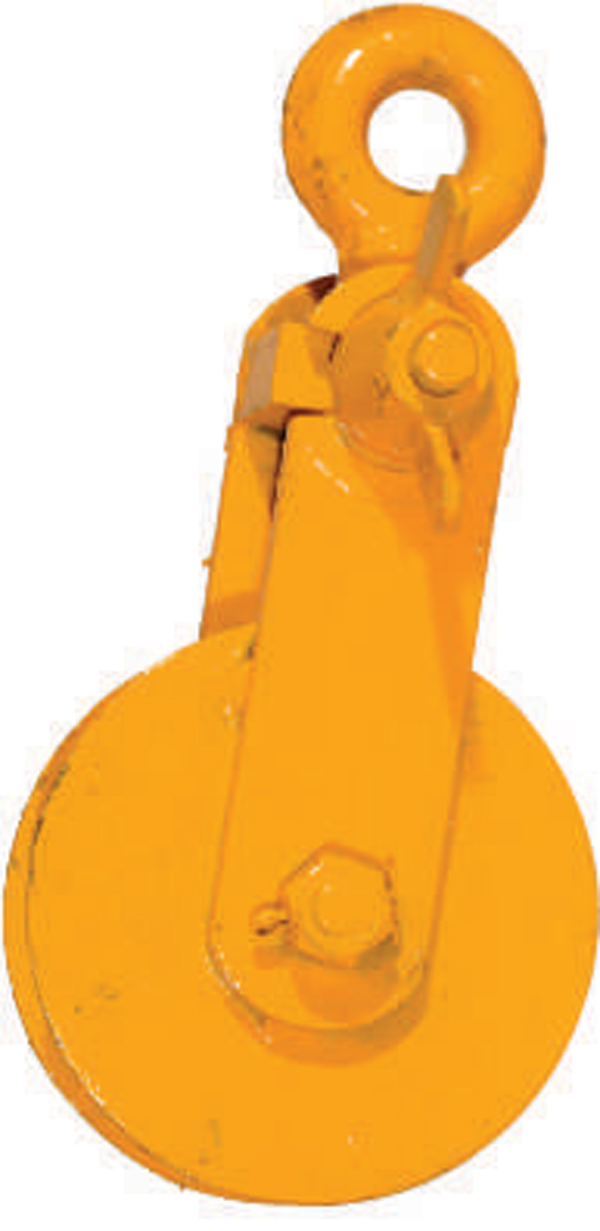

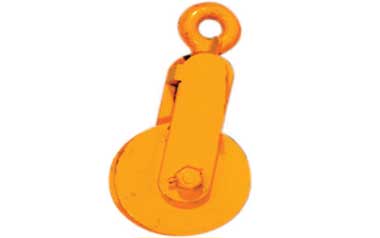

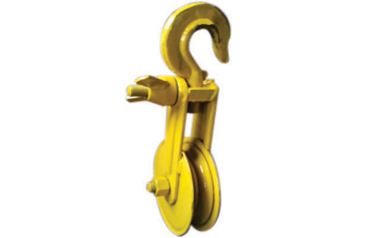

These pulleys have various uses during tower erection and conductor stringing. It opens from one side of the frame which facilitates easy loading & unloading of steel wire or PP rope. The frames & pulleys are made up of alloy steel. It comes in “S” or “Eye” hook which swing around on its pivot done on top of the frame. The pulley rolls on ball bearing.

These pulleys have various uses during tower erection and conductor stringing. It opens from one side of the frame which facilitates easy loading & unloading of steel wire or PP rope. The frames & pulleys are made up of alloy steel. It comes in “S” or “Eye” hook which swing around on its pivot done on top of the frame. The pulley rolls on ball bearing

These pulleys have various uses during tower erection and conductor stringing. It opens from one side of the frame which facilitates easy loading & unloading of steel wire / PP rope. Side latch of the Pulley open in no load condition and get self locked when Pulley is loaded. The frames & pulleys are made up of alloy steel. Shackle / Eye / S hook fitted with pulley, swing around on its pivot done on top of the frame. The pulley rolls on ball bearing.

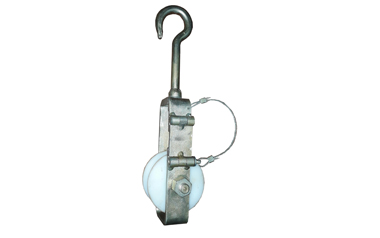

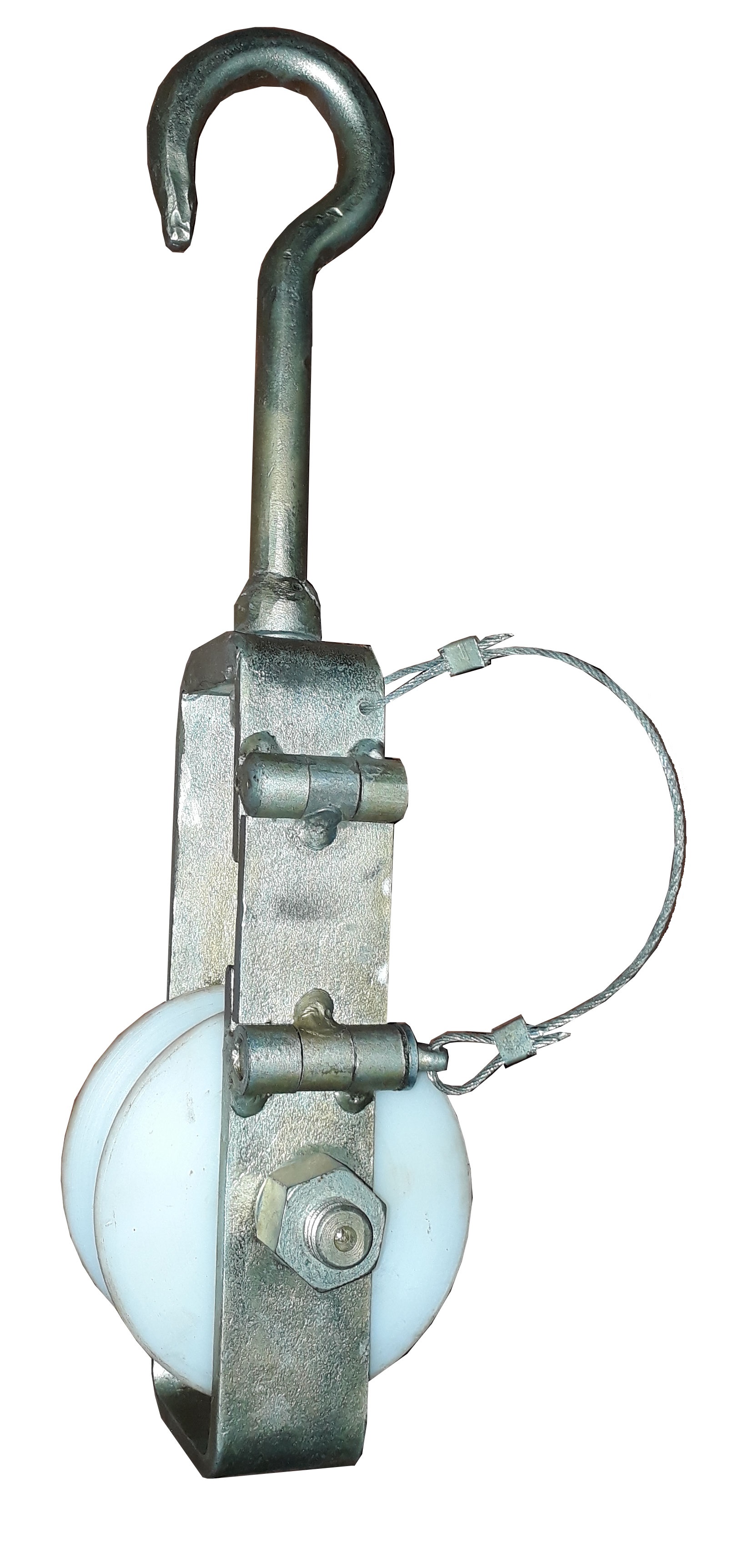

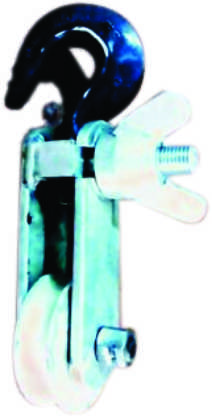

These pulleys have various uses during tower erection and conductor stringing. It opens from one side of the frame which facilitates easy loading & unloading of PP rope. The frames are made up of aluminum alloy & sheave is made up of nylon. It comes in “S” or “Eye” hook which swing around on its pivot done on top of the frame. The pulley rolls on ball bearing.

These pulleys have various uses during tower erection and conductor stringing. It opens from one side of the frame which facilitates easy loading & unloading of PP rope. The frames are made up of aluminum alloy & sheave is made up of nylon. It comes in “S” or “Eye” hook which swing around on its pivot done on top of the frame. The pulley rolls on ball bearing.

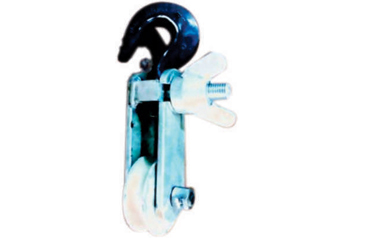

These light weight snatch block have various uses during tower erection and conductor stringing. It opens from one side of the frame which facilitates easy loading & unloading of PP rope. The frames are made up of steel & sheave is fabricated from steel sheet. It comes in “S” or “Eye” hook which swing around on its pivot done on top of the frame. The pulley rolls on ball bearing.

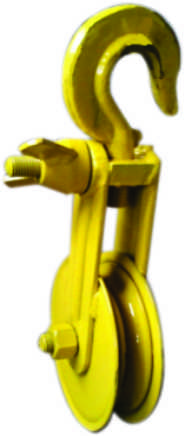

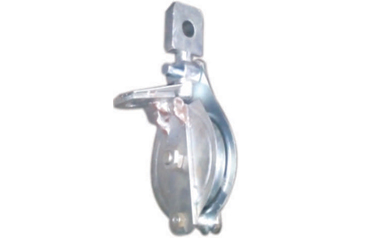

These pulleys have various uses during tower erection and conductor stringing. Due to its specific design it act as open and closed both type of pulleys and can align easily in any direction during loading. The frame and pulleys are made up of Alloy steel while hook and swiveling system are assembled from different alloy steel forged parts. The pulley rolls on ball bearing.

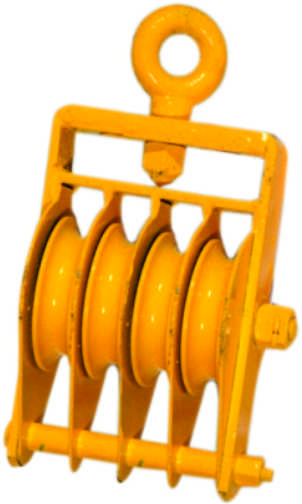

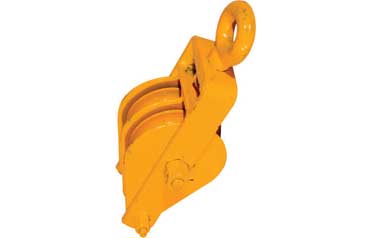

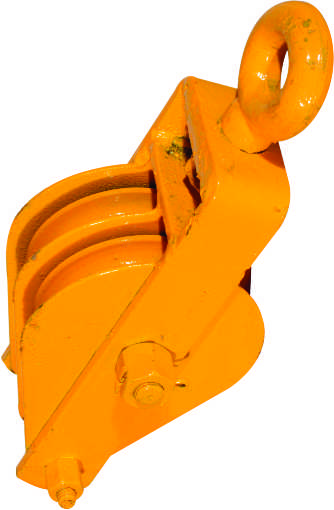

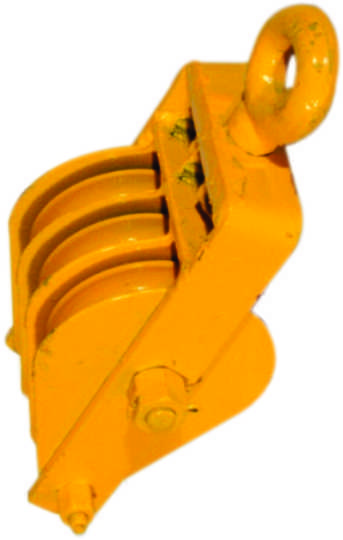

These pulleys have various uses during tower erection and conductor stringing. The pulleys are closed within the frame hence only end of the ropes can be passed across the pulleys groove. The frames & pulleys are made up of alloy steel. It comes in “S” or “Eye” hook which swing around on its pivot done on top of the frame. The pulley rolls on ball bearing.

These pulleys have various uses during tower erection and conductor stringing. The pulleys are closed within the frame hence only end of the ropes can be passed across the pulleys groove. The frames & pulleys are made up of alloy steel. It comes in “S” or “Eye” hook which swing around on its pivot done on top of the frame. The pulley rolls on ball bearing.

These pulleys has it’s use during tower erection & stringing. The pulleys are closed within the frame hence only end of the ropes can be passed across the pulley’s grooves. The frames & pulleys are made up of alloy steel. It comes in “S” or “Eye” hook which swing around on its pivot done on top of the frame. The pulley rolls on ball bearing.

These pulleys have its use during tower erection & stringing. The pulleys are closed within the frame hence only end of the ropes can be passed across the pulley’s grooves. The frames & pulleys are made up of alloy steel. It comes in “S” or “Eye” hook which swing around on its pivot done on top of the frame. The pulley rolls on ball bearing.

These pulleys are used during tower erection and stringing. The pulleys are closed within the frame hence only end of the wire ropes can be passed across the pulleys grooves. The frames & pulleys are made up of alloy steel. It comes in “S” or “Eye” hook which swing around on its pivot done on top of the frame. The pulley rolls on ball bearing.

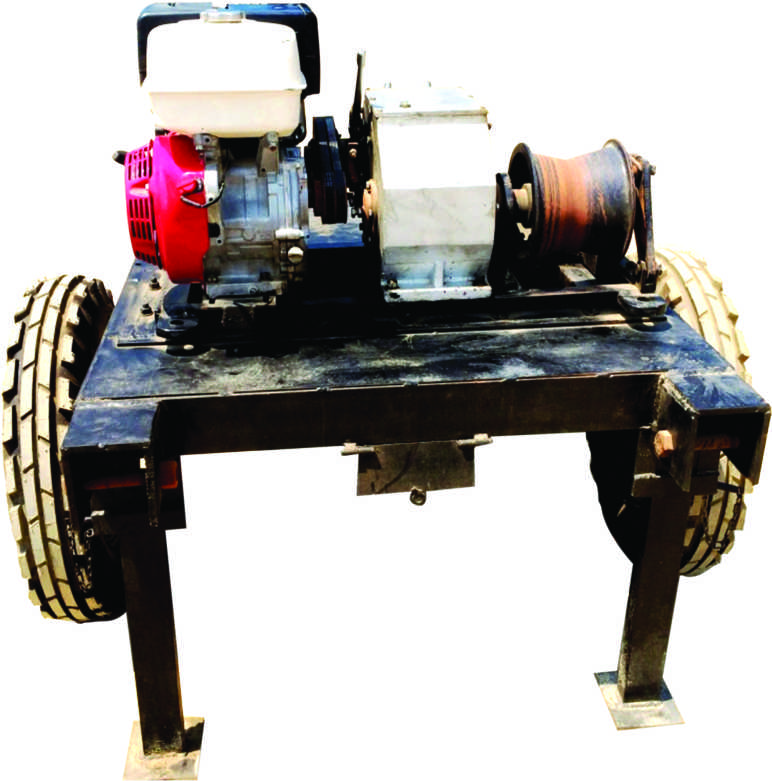

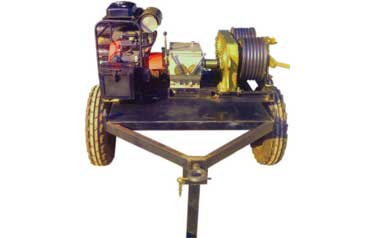

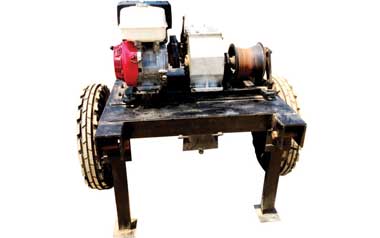

These machines have their uses during tower erection for lifting and lowering load and stringing of conductors. The bull wheel gets its driving power from petrol driven engine. For easy transportation, entire system is fitted on tire mounted trolley. These light weight power winch machine has single bull wheel.

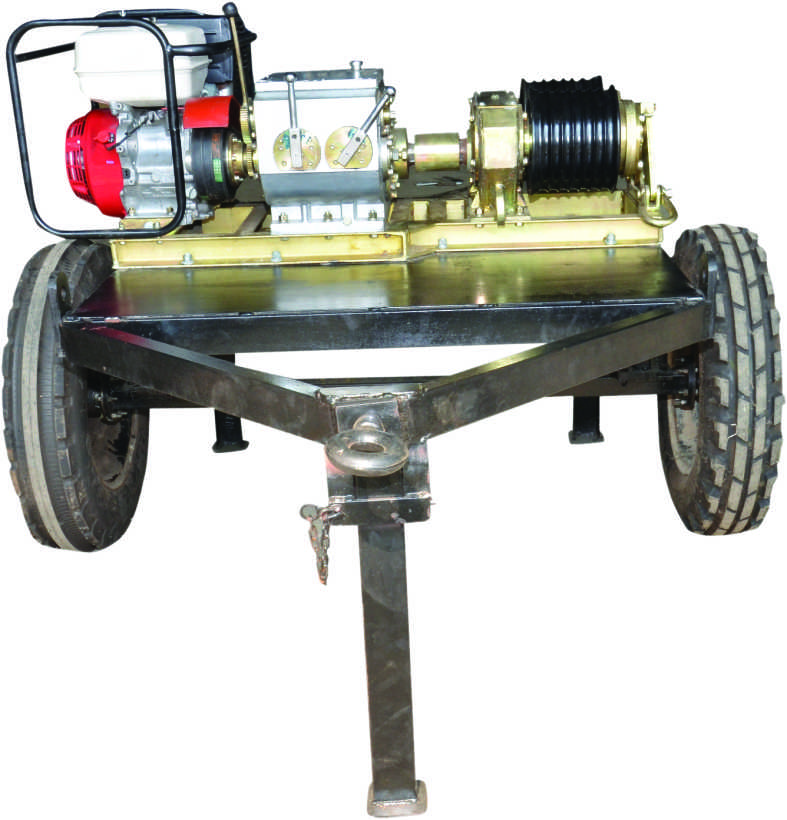

This winch machine is a newly designed mechanical traction machine with muti-usage; it is mainly used in the erection of super high voltage towers & the string of steel ropes and cables. Equipped with honda 20 hp petrol engine, it is also easily operated with the advantages of fast traction speed and safety but without damaging steel ropes. It can be detached into 3 parts which facilitates it's transportation at mountain area.

Characteristics: reduce the chance of damage of steel rope by double capstan design; fast but stable pulling and hoisting at rather even speed; need only one person to pull the rope and wind it on reel at ease; belt-pulley power transmission driven by engine; reliable brake system; applied in pulling, stringing, winding, lifting, sagging and erection of transmission tower; 50kn capacity; light weight and detachable option (into 3 parts) available upon request.

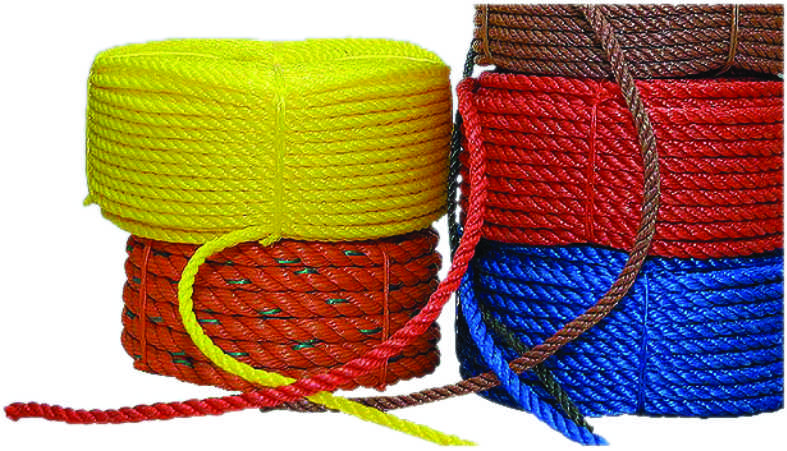

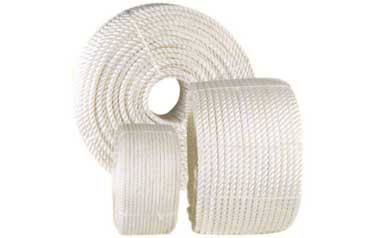

The information provided in the section is restricted to normally laid 3 stand rope in standard length. Soft & hard laid ropes as well as ropes on length to suit customer’s requirement are available on request. 3/4 STRAND “Z” TWIST POLYPROPYLENE FILM ROPE (UV STABILIZED) * Light Weight * Resistance to rot, mildew and marine organisms * High Breaking Strength * Unaffected by Acids and Alkalis * Long Lasting * Controlled Elongation

The information provided in the section is restricted to normally laid 3 stand rope in standard length. Soft & hard laid ropes as well as ropes on length to suit customer’s requirement are available on request. 3/4 STRAND “Z” TWIST POLYPROPYLENE FILM ROPE (UV STABILIZED) * Light Weight * Resistance to rot, mildew and marine organisms * High Breaking Strength * Unaffected by Acids and Alkalis * Long Lasting * Controlled Elongation

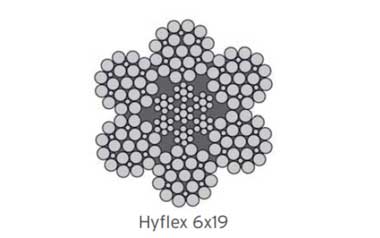

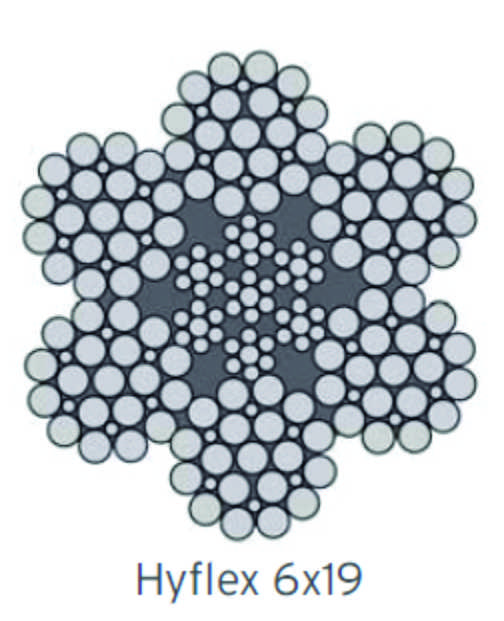

Core construction 6x19, made from high tensile strength, galvanized / un galvanized, fmc, 1770n / sq. N-mm, wounded over steel drum. It is available in different diameter and length.

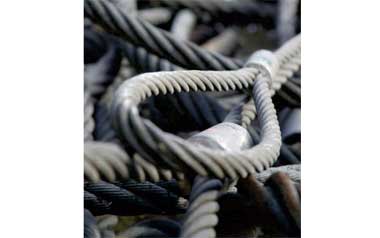

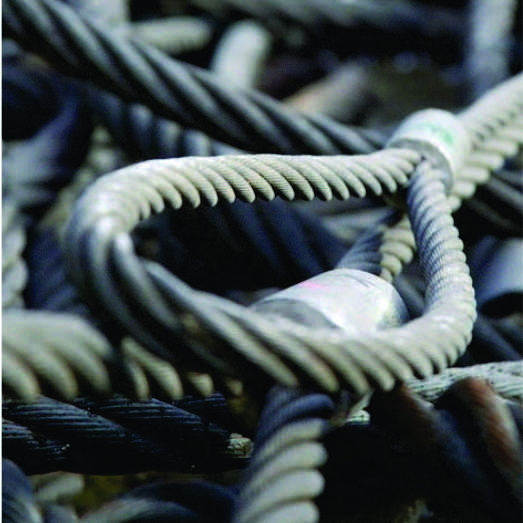

These slings are manufactured from Usha martin make steel wire rope available in various length and diameter of steel wire rope with one end spliced and both end spliced as per is: 2762.

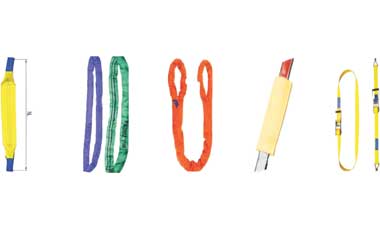

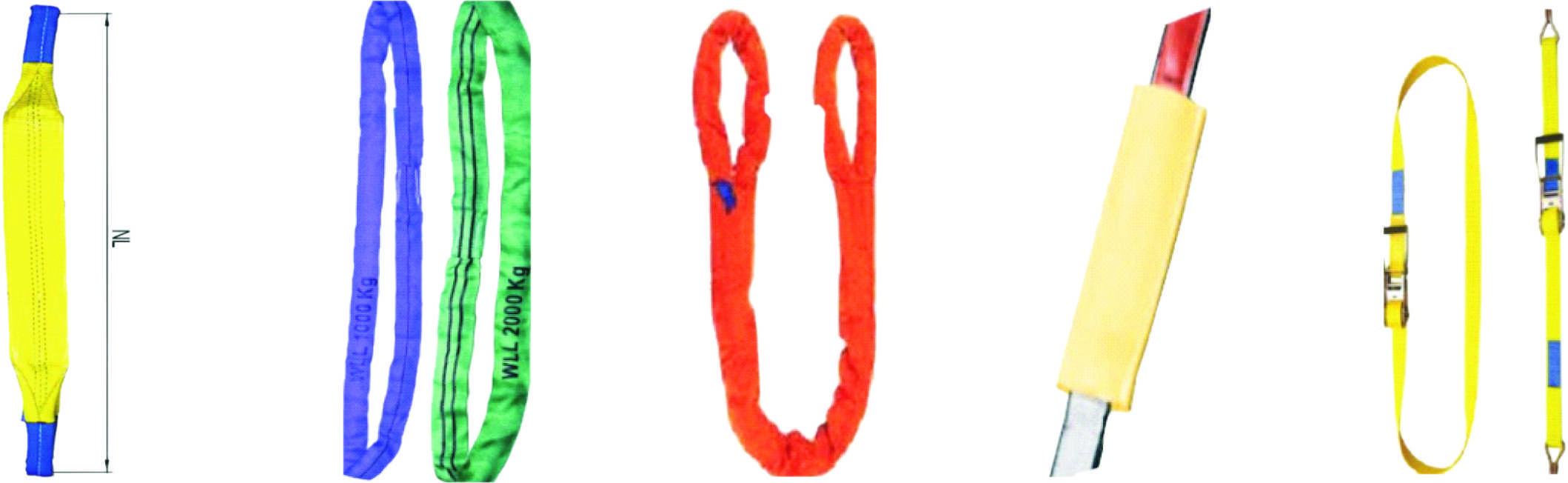

FERRETERRO Polyester Double Ply Duplex Webbing Sling (ASME B 30.9 Standards) Polyester Round & Eye to Eye Sling with Anti Abrasive Sleeve Ratchet Lashings

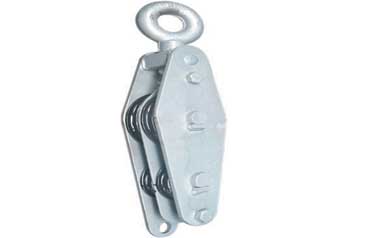

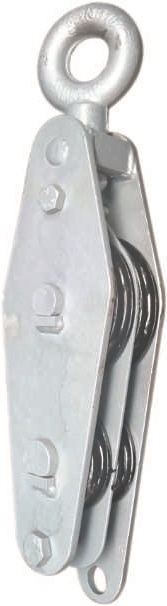

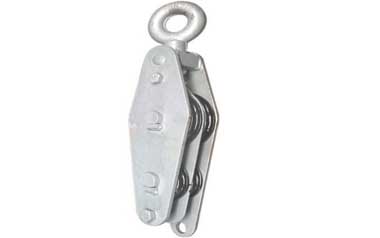

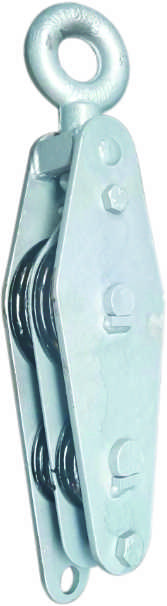

These are close type pulleys in which a set of two pulleys are fixed in tandem style and all four pulleys are covered within the alloy steel plate instead of alloy steel sheet. These cover plate solve the purpose of security cover as well as frame of the pulleys, one of the side cover has integrated projection which facilitate easy attachment of swivel joint. For better security and swiveling, the shank of the hook joins together with pivot of the pulley by means of hot forging which keep hook and pivot integrated. These pulleys are more sturdy and rigid against rough use also it has more loads bearing capacity to weight ratio.

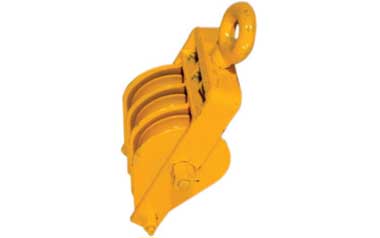

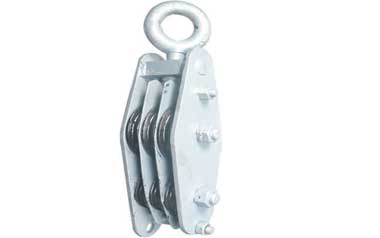

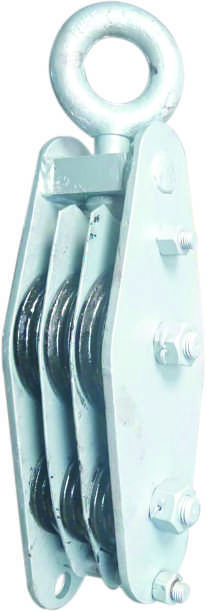

These are close type pulleys in which a set of three pulleys are fixed in tandem style and all six pulleys are covered within the alloy steel plate instead of alloy steel sheet. These cover plate solve the purpose of security cover as well as frame of the pulleys, one of the side cover has integrated projection which facilitate easy attachment of swivel joint. For better security and swiveling, the shank of the hook joins together with pivot of the pulley by means of hot forging which keep hook and pivot integrated. These pulleys are more sturdy and rigid against rough use also it has more loads bearing capacity to weight ratio.

These pulleys have various uses during tower erection and conductor stringing. The pulleys are closed within the frame hence only end of the ropes can be passed across the pulleys groove. The frames & pulleys are made up of Alluminium alloy. It comes in ‘S’ or ‘EYE’ hook which swing around on its pivot done on top of the frame. The pulley rolls on ball bearing.

These pulleys are used during final sagging of conductors. The pulleys are closed within the frame hence only end of the wire ropes can be passed across the pulleys grooves. The frames & pulleys are made up of Alluminium alloy. It comes in ‘S’ or ‘EYE’ hook which swing around on its pivot done on top of the frame. The pulley rolls on ball bearing. The salient feature of these clamp are its very light weight capacity in compression to conventional steel alloy pulleys.

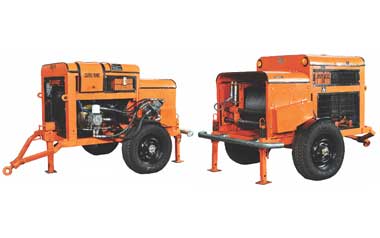

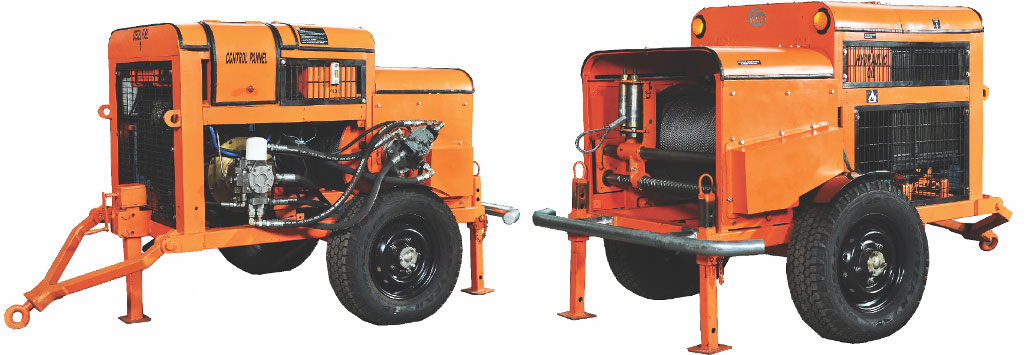

These machine are indigenously designed and developed for stringing & tower erection purpose of over head Power Transmission line. The pulling and lifting action takes place hydraulically, the machine is fitted with 25.8kW Diesel engine and corresponding hydraulic pump, hydraulic motor and hydraulic gear the Entire system is assembled on rigid axle with two tyres & drawbar for towing operation And steel drum.
