Underground Stringing Tools

These rollers are designed for easy lying of conductor cables, the dimension of rollers are kept as per size of the cables to be laid. These rollers have been designed in number of variant according to its purpose and use. Rollers are made up of Alluminium / Steel alloy and rolls on sealed bearings the entire system of rollers are fixed on light weight robust alloy steel frame and the frame and alloy steel portion of each cable rollers are powder coated for better protection against corrosion.

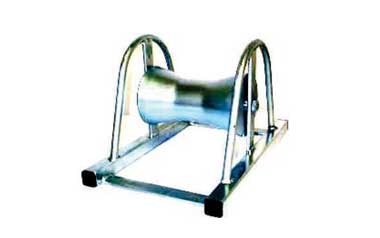

These are initial rollers kept just in front of cable drum at the point where cables are about to touch the ground it guide and align the cable unidirectional.

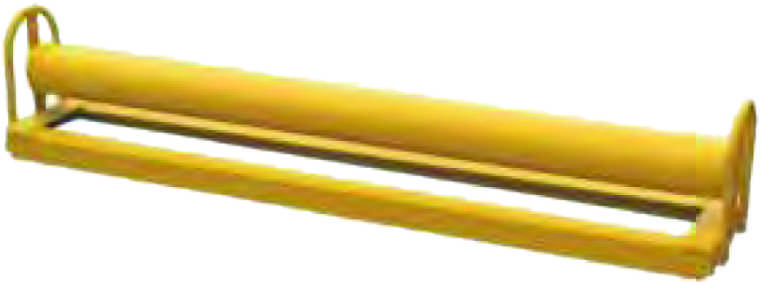

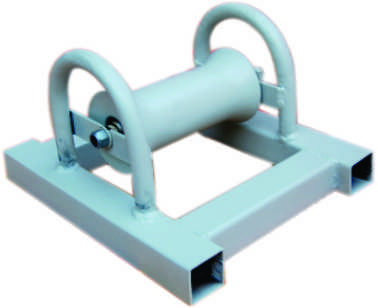

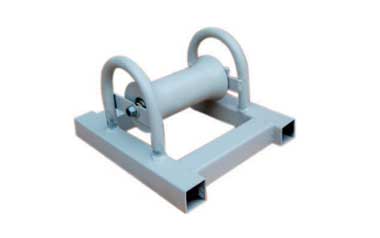

These rollers are provided support to the cables where ever pulling is done in straight line either in trench or on ground.

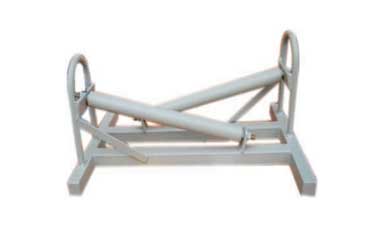

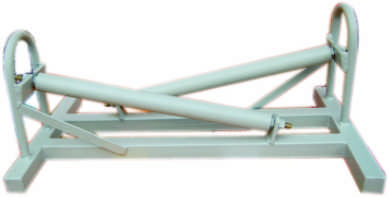

These rollers are designed to meet the requirement of cable pulling in narrow trenches.

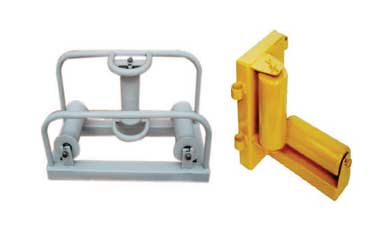

These rollers are designed to meet the requirement of cable pulling at angular turning point

These rollers are designed to meet the requirement of cable pulling over cable laid down.

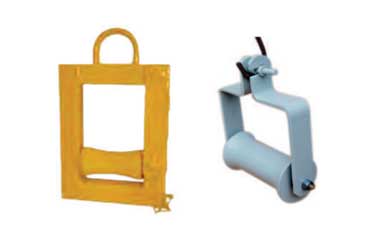

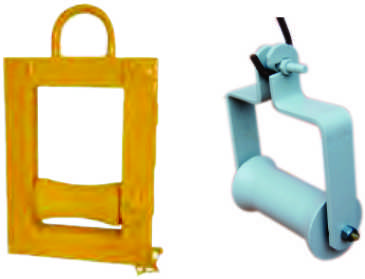

These rollers are designed to meet the requirement of cable pulling above the ground / high rise building and gantries of power substations.

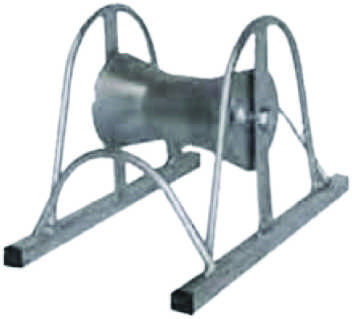

These are the first roller kept in to the trench after pilot roller, due to its wide rolling area it cope the swiveling phenomena of the cable which may induced during its pulling.

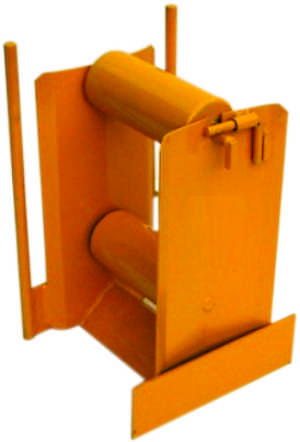

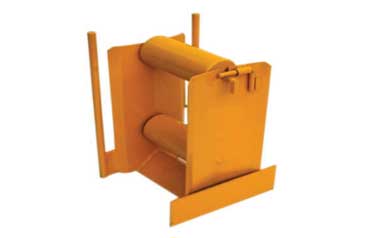

These rollers are designed to cope the Jerking of cables, which may induced during its pulling and keep the cable intact to roll over rollers, opening facility for top rollers are provided to facilitate easy loading and un loading of cables.

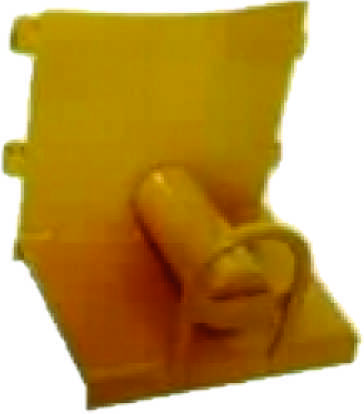

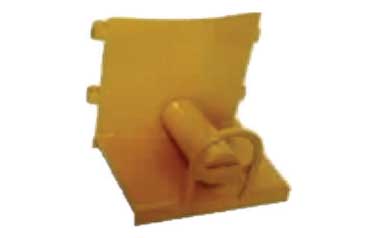

These rollers are used wherever cable pulling is required to be done in small curving path it can be used individually or in a series by joining together with the help of stake pin provided in the side plate.

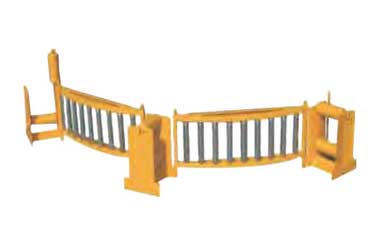

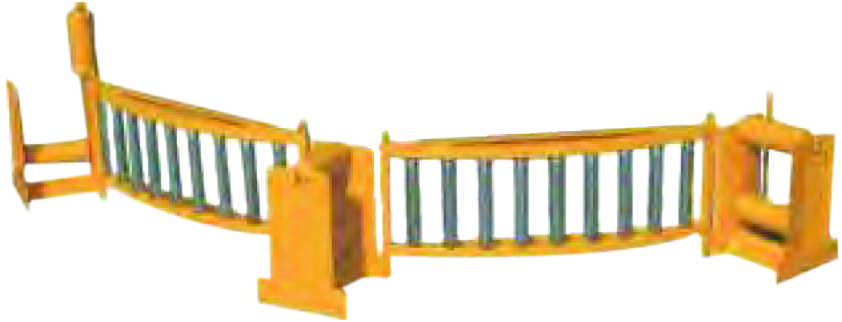

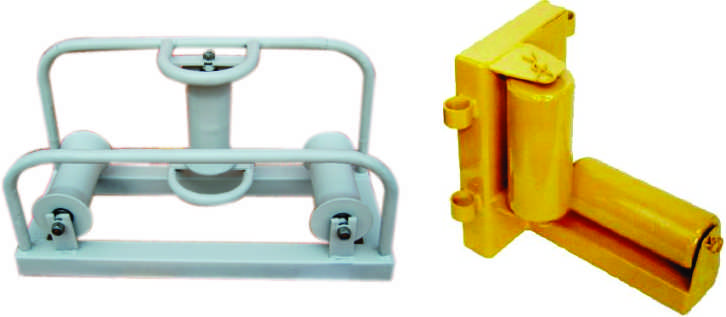

These rollers are used wherever cable pulling is required to be done in big curving path it can be used individually or in a series by joining together with the help of stake pin provided in the side plate these rollers are consist of vertical as well as horizontal rollers.

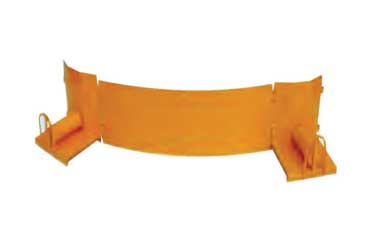

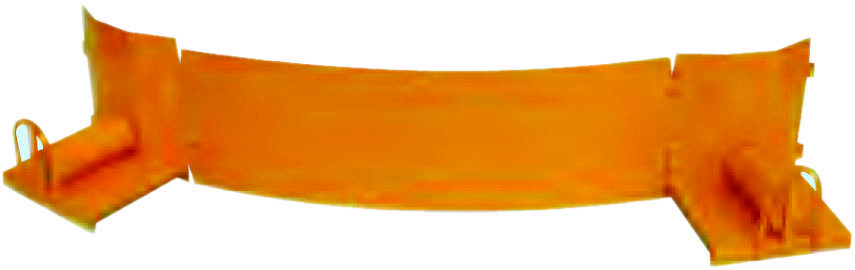

These rollers are used wherever cable pulling is required to be done in big curving path it can be used individually or in a series by joining together with the help of stake pin provided in the side plate these rollers are consist of vertical plates and horizontal rollers.
